2000L Complete Single Malt Whisky Distillation System
- Aug 28, 2025
- 67
- tiantai
Product Overview
The 2000L Single Malt Whisky Distillation System is built for medium to large-scale craft distilleries seeking higher output and consistent quality.
With integrated malt handling, mashing, fermentation, distillation, spirit storage, chilling, and CIP cleaning, it provides a complete turnkey solution from raw grain to bottled spirit.
Crafted with food-grade SUS304 stainless steel and traditional red copper stills, this system ensures durability, efficiency, and the authentic character of premium single malt whisky.
Key Features
-Large production scale: 2000L mashing & wash still, 1400L spirit still, and 4 × 2000L fermenters.
-Complete process line: malt handling → mashing → fermentation → double distillation → spirit storage.
-Premium materials: SUS304 stainless steel + red copper for excellent heat transfer and whisky flavor.
-High-efficiency cooling: dual 10P glycol chillers and a 6000L cold water tank.
-Flexible heating: compatible with optional steam, electric, or gas.
-CIP cleaning system: 200L two-tank cart with explosion-proof pump.
-Advanced control panels: dedicated distillery & still control cabinets.
-Expandable: optional heat recovery and steam supply units available.
Technical Specifications
Optional heat recovery unit available on request.
Application
The 2000L whisky distillation system is ideal for established distilleries, regional spirit brands, and contract production facilities.
It can also be customized for rum, gin, brandy, vodka, and other craft spirits.
.jpg)

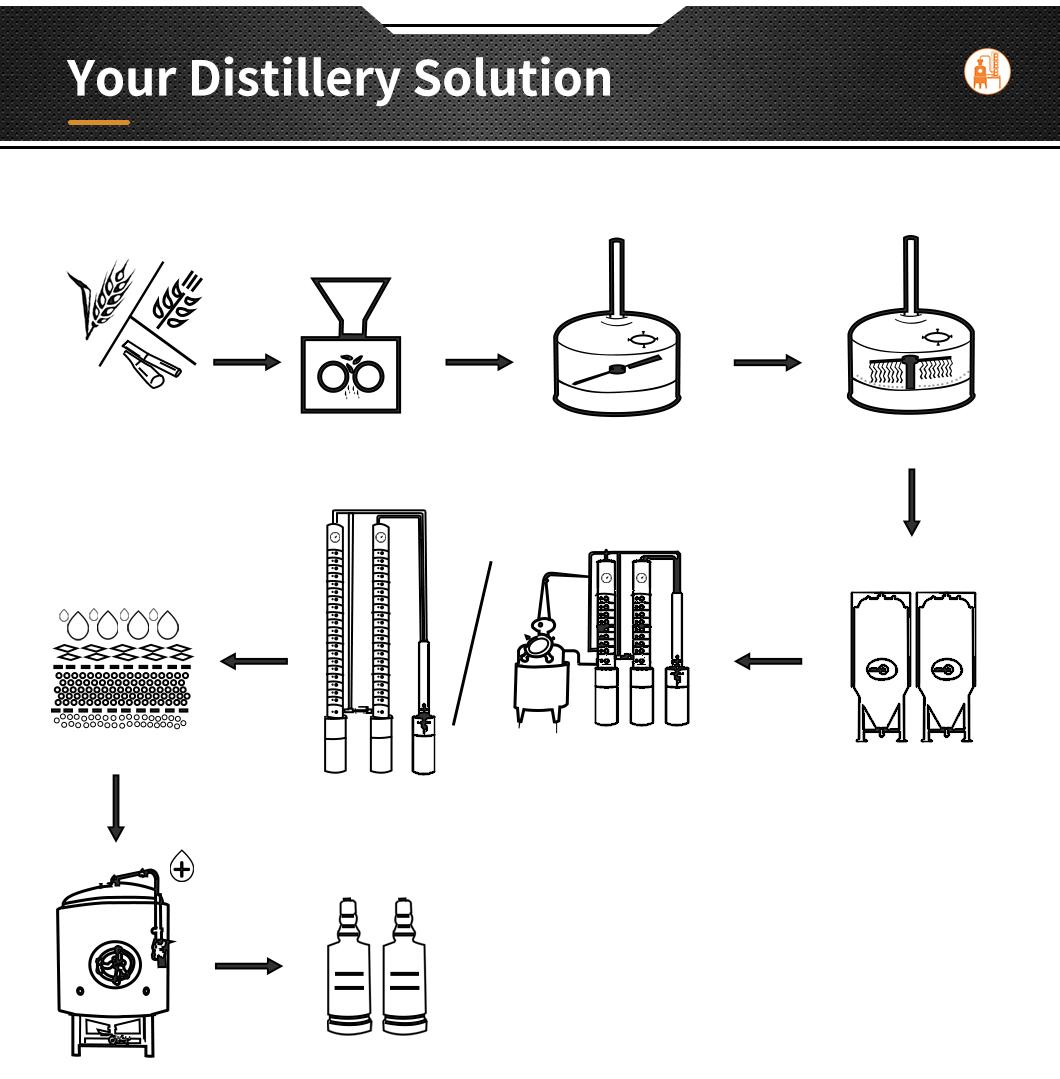

Process Flow
Malt handling & milling → mashing & lautering
Wort cooling & fermentation (4 × 2000L tanks)
First distillation in 2000L copper wash still
Second distillation in 1400L copper spirit still
Spirit safe monitoring → receivers → storage
Chilling, CIP, and utility systems support production
.jpg)
Welcome to contact us for a tailor-made quotation!
Edited by Amanda
Sales manager of Tiantai brewtech
Email: [email protected]
The 2000L Single Malt Whisky Distillation System is built for medium to large-scale craft distilleries seeking higher output and consistent quality.
With integrated malt handling, mashing, fermentation, distillation, spirit storage, chilling, and CIP cleaning, it provides a complete turnkey solution from raw grain to bottled spirit.
Crafted with food-grade SUS304 stainless steel and traditional red copper stills, this system ensures durability, efficiency, and the authentic character of premium single malt whisky.
Key Features
-Large production scale: 2000L mashing & wash still, 1400L spirit still, and 4 × 2000L fermenters.
-Complete process line: malt handling → mashing → fermentation → double distillation → spirit storage.
-Premium materials: SUS304 stainless steel + red copper for excellent heat transfer and whisky flavor.
-High-efficiency cooling: dual 10P glycol chillers and a 6000L cold water tank.
-Flexible heating: compatible with optional steam, electric, or gas.
-CIP cleaning system: 200L two-tank cart with explosion-proof pump.
-Advanced control panels: dedicated distillery & still control cabinets.
-Expandable: optional heat recovery and steam supply units available.
Technical Specifications
| Malt Handling | Main Equipment | Main Equipment | Main Equipment |
| Malt Handling | Malt Mill, Auger Conveyor, Grist Hopper | 500–800kg/hr, 1500L | SUS304 |
| Mashing | Mash Lauter Tun + Wort Receiver | 2000L each | SUS304 |
| Plate Heat Exchanger | 20m² | SUS304 | |
| Fermentation | Fermentation Tanks | 4 × 2000L | SUS304 |
| Distillation | Copper Wash Still | 2000L | Red Copper |
| Copper Spirit Still | 1400L | Red Copper | |
| Spirit Safe + Pipelines + Control Panel | 1 Set | Copper + SS | |
| Spirit Storage | Receivers (Low/Head & Tail/Heart) | 1500L / 750L / 400L | SUS304 |
| Cooling | Glycol Chillers + Cold Water Tank | 2 × 10P + 6000L | SUS304 |
| CIP Unit | Portable Two-Tank CIP Cart | 200L | SUS304 |
| Heating (Optional) | Steam Generator | 300kg/hr | - |
Application
The 2000L whisky distillation system is ideal for established distilleries, regional spirit brands, and contract production facilities.
It can also be customized for rum, gin, brandy, vodka, and other craft spirits.
Process Flow
Malt handling & milling → mashing & lautering
Wort cooling & fermentation (4 × 2000L tanks)
First distillation in 2000L copper wash still
Second distillation in 1400L copper spirit still
Spirit safe monitoring → receivers → storage
Chilling, CIP, and utility systems support production
Welcome to contact us for a tailor-made quotation!
Edited by Amanda
Sales manager of Tiantai brewtech
Email: [email protected]
