3000L Complete Single Malt Whisky Distillation System
- Aug 28, 2025
- 179
- tiantai
Our 3000L Single Malt Whisky Production Line is a fully integrated solution that combines mashing, fermentation, and traditional copper pot still distillation. Designed for medium-scale craft distilleries, this system balances production efficiency with authentic whisky-making traditions.
Key Features
-Turnkey System – From malt handling to spirit storage.

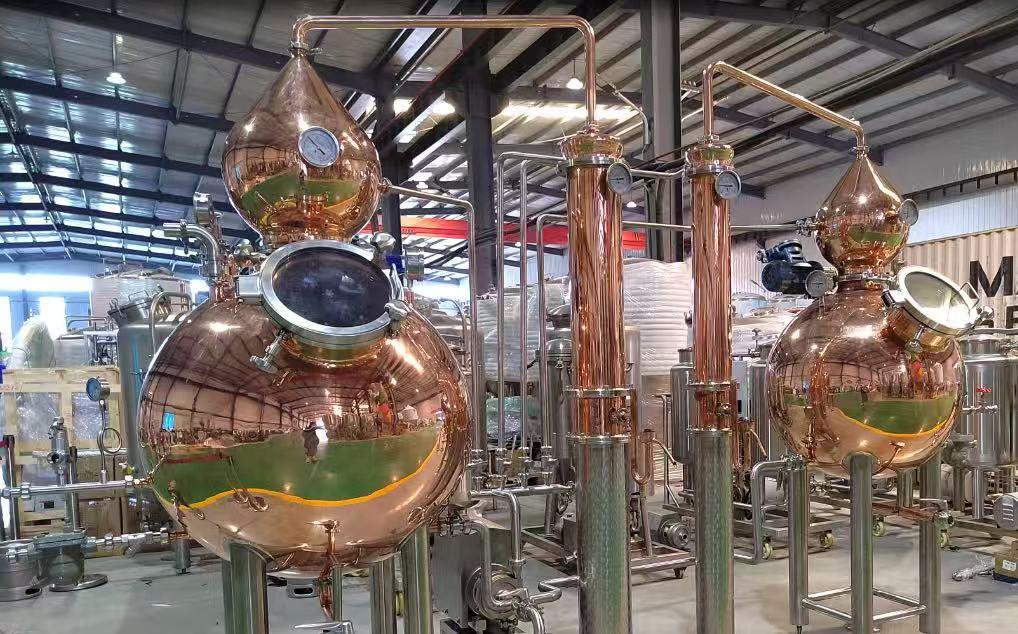

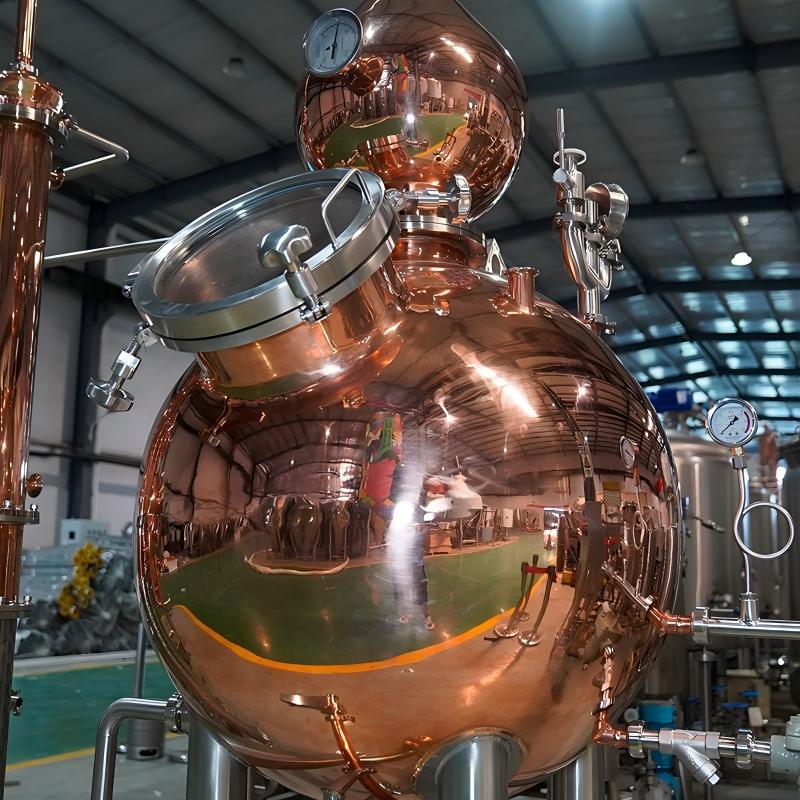

-Copper Pot Stills – 3000L wash still + 2000L spirit still for authentic flavor.
-High-Efficiency Mashing – 3000L mash lauter tun with 30m² heat exchanger.
-Fermentation Flexibility – 4 × 3000L jacketed fermenters with glycol cooling.
-Glycol Chilling – Dual 15P chillers with 10,000L cold water tank.
-CIP Cleaning System – 300L dual-tank CIP station for easy sanitation.
-Optional Steam Generator – For steam-heated operation.
.jpg)
Specification
Applications
✔ Medium-sized craft whisky distilleries
✔ Expansion projects for existing breweries/distilleries
✔ Pilot production for premium malt whisky brands
.jpg)
Welcome to contact us for a tailor-made quotation!
Edited by Amanda
Sales manager of Tiantai brewtech
Email: [email protected]
Key Features
-Turnkey System – From malt handling to spirit storage.
-Copper Pot Stills – 3000L wash still + 2000L spirit still for authentic flavor.
-High-Efficiency Mashing – 3000L mash lauter tun with 30m² heat exchanger.
-Fermentation Flexibility – 4 × 3000L jacketed fermenters with glycol cooling.
-Glycol Chilling – Dual 15P chillers with 10,000L cold water tank.
-CIP Cleaning System – 300L dual-tank CIP station for easy sanitation.
-Optional Steam Generator – For steam-heated operation.
Specification
| Section | Main Equipment | Capacity / Qty | Material |
| Malt Handling | Malt Mill, Auger Conveyor, Grist Hopper | 1000–1200kg/hr, 1800L | SUS304 |
| Mashing | Mash Lauter Tun + Wort Receiver | 3000L each | SUS304 |
| Plate Heat Exchanger | 30m² | SUS304 | |
| Fermentation | Fermentation Tanks | 4 × 3000L | 4 × 3000L |
| Distillation | Copper Wash Still | 3000L | Red Copper |
| Copper Spirit Still | 2000L | Red Copper | |
| Spirit Safe + Pipelines + Control Panel | 1 Set | Copper + SS | |
| Spirit Storage | Receivers (Low/Head & Tail/Heart) | 2000L / 1000L / 600L | SUS304 |
| Cooling | Glycol Chillers + Cold Water Tank | 2 × 15P + 10,000L | SUS304 |
| CIP Unit | Fixed Two-Tank CIP Station | 300L | SUS304 |
| Heating (Optional) | Steam Generator | 500kg/hr | - |
Applications
✔ Medium-sized craft whisky distilleries
✔ Expansion projects for existing breweries/distilleries
✔ Pilot production for premium malt whisky brands
