Wort Aeration Station in Beer Brewing System
- Mar 03, 2026
- 105
- tiantai
In modern craft or industrial brewing, the wort aeration system plays a critical role in fermentation performance and overall beer quality. A professionally designed, hygienic aeration solution not only ensures healthy yeast propagation but also directly impacts attenuation, diacetyl control, and final flavor stability.
Optimized Oxygenation for Healthy Fermentation
At the beginning of fermentation, yeast requires sufficient dissolved oxygen (DO) to synthesize sterols and build strong cell membranes. Industry practice typically targets 8–12 ppm DO for ales, with even higher levels for lagers, depending on gravity and yeast strain.

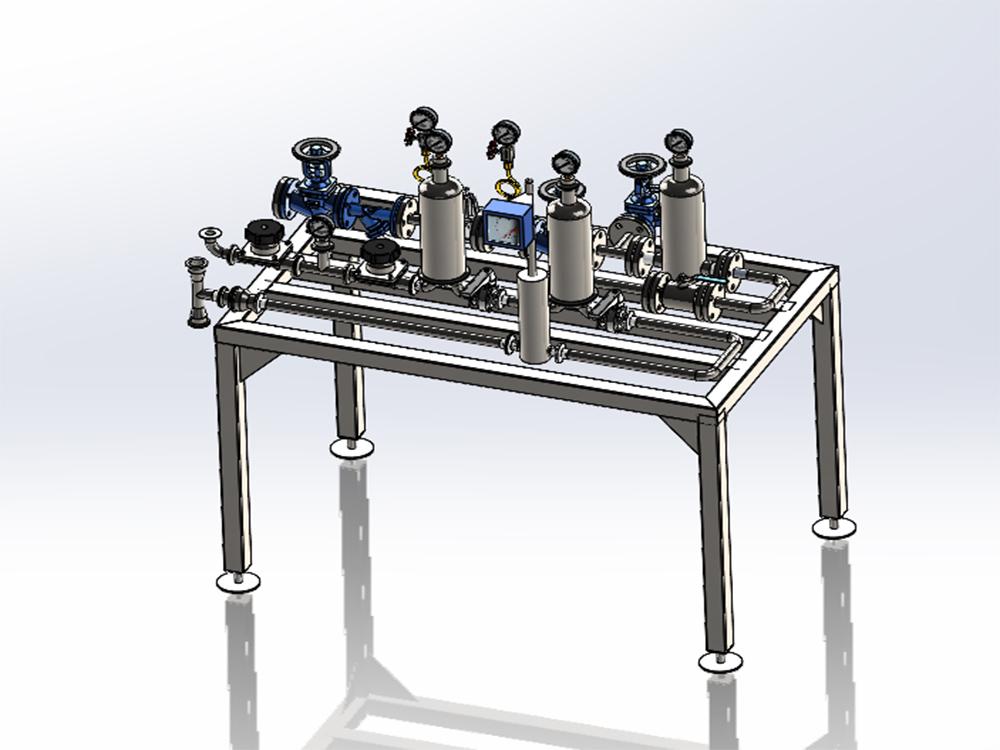

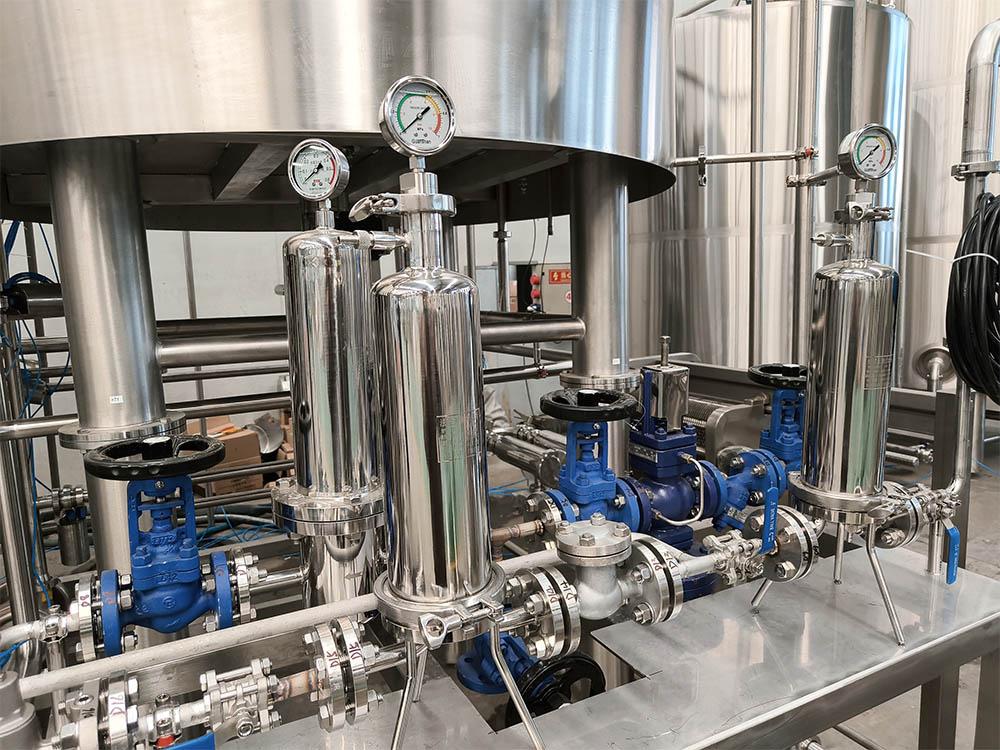

Our wort aeration system features:
- Precision mass flow control for accurate oxygen dosing
- Stainless steel sintered diffusion stone
- Fully automated control integration
This ensures rapid and uniform oxygen dissolution before the wort enters the fermenter, promoting consistent fermentation performance and improved yeast vitality.
Sterile Filtration + Steam Sterilization (SIP) for Maximum Safety
Oxygen quality is just as important as oxygen quantity. To eliminate contamination risks, the system is equipped with a 0.45μm and 0.01μm hydrophobic sterile gas filter, effectively removing microorganisms and particles from oxygen or sterile air.
In addition, the system supports Steam-In-Place (SIP) sterilization with 0.5μm:
- Filter housing and oxygen pipelines are steam-sterilizable at 121°C
- Fully high-temperature-resistant design
- Condensate drainage structure eliminates dead zones
The sterile filtration and steam sterilization ensures microbiological safety and protects your fermentation from unwanted contamination.
Intelligent Automation for Modern Breweries
- The aeration system can be seamlessly integrated with the brewhouse, plate heat exchanger, and fermentation tank PLC system:
- Automatic oxygen adjustment based on wort flow rate
- Reliable pneumatic valve control
With one-touch sterilization and automated operation, the system minimizes manual intervention while maximizing process reliability.
From pilot craft breweries to large-scale industrial plants, our wort aeration system is engineered to meet strict food-grade standards while delivering precision, safety, and automation.
If you are looking for wort aeration solution for your brewery system, kindly contact Derrick to get your professional proposal.
Derrick
Sales Manager
[email protected]
Tiantai Beer Equipment
