700L Complete Grain Whisky Distillery Equipment
- Sep 28, 2025
- 161
- tiantai

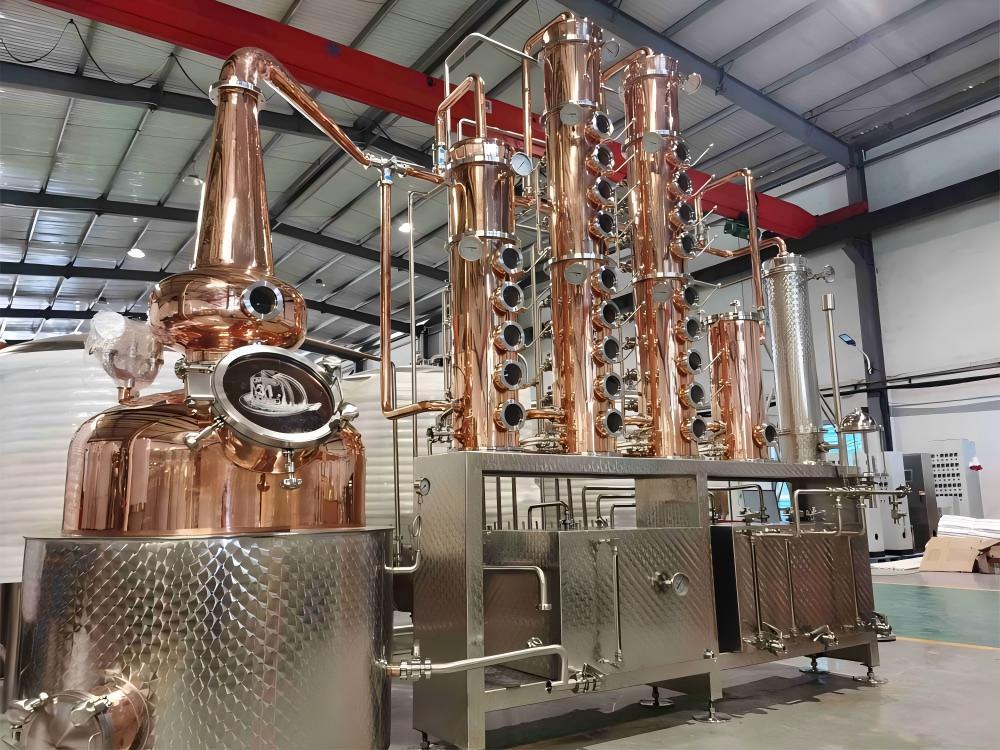

Product Overview
The 700L Complete Distillation Equipment is designed for craft spirit production such as whiskey, vodka, rum, gin, brandy, and more.
It combines malt milling, mashing, fermentation, distillation, and cooling systems into one professional package.
All tanks are manufactured with food-grade SUS304 stainless steel and TP2 red copper, ensuring durability, hygiene, and high distillation efficiency.
Main Features
Capacity: 700L working volume, suitable for small to medium-sized distilleries
Material: SUS304 stainless steel + TP2 red copper pot still
Heating Options: Electric or Steam heating
Process: Mashing → Fermentation → Distillation → Spirit collection
Automation: Semi-automatic control cabinet, optional PLC touch screen
Applications: Gin, Vodka, Whiskey, Brandy, Rum, Fruit Spirits
Specification
Advantages
-High alcohol purity with 4 bubble plate distillation column
-Multi-function design for whiskey, gin, vodka, rum, brandy
-Semi-automatic operation with optional PLC control
-Durable copper & stainless steel construction
-Full CIP cleaning system for easy maintenance
Customization Options
-Heating method: Electric / Steam / Gas direct fire
-Column plates: 4–10 trays (according to spirit type)
-Gin basket: Stainless steel or copper
-PLC control with touch screen available
-Logo engraving on glass manholes
The 700L Complete Distillation Equipment is designed for craft spirit production such as whiskey, vodka, rum, gin, brandy, and more.
It combines malt milling, mashing, fermentation, distillation, and cooling systems into one professional package.
All tanks are manufactured with food-grade SUS304 stainless steel and TP2 red copper, ensuring durability, hygiene, and high distillation efficiency.
Main Features
Capacity: 700L working volume, suitable for small to medium-sized distilleries
Material: SUS304 stainless steel + TP2 red copper pot still
Heating Options: Electric or Steam heating
Process: Mashing → Fermentation → Distillation → Spirit collection
Automation: Semi-automatic control cabinet, optional PLC touch screen
Applications: Gin, Vodka, Whiskey, Brandy, Rum, Fruit Spirits
Specification
| Section | Equipment | Capacity / Model | Material | Function |
| Malt Milling | Malt Miller | 300-500kg/hr | Carbon steel / SUS304 | Malt crushing |

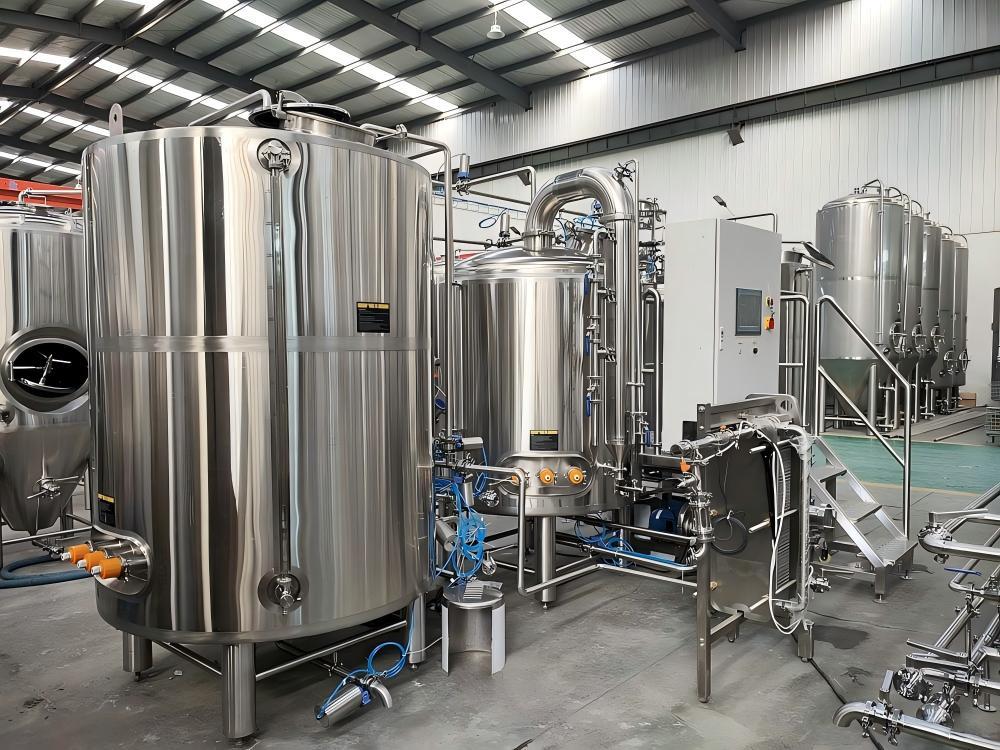

| Brewhouse | Mash/Lauter Tun | 700L (+25%) | SUS304 | Mashing & lautering |
| Brewhouse | Hot Water Tank | 700L | SUS304 | Hot water supply |
| Fermentation | Fermentation Tanks | 700L × 4 sets | SUS304 | Wort fermentation |
| Cooling | Glycol Water Tank | 1200L | SUS304 | Cooling water supply |
| Cooling | Glycol Chiller | 2×3HP | CE/UL certified | Glycol cooling |
| Distillation | Copper Still Pot | 700L | TP2 Red Copper + SUS304 | Alcohol distillation |
| Distillation | Helmet + Swan Neck + Lyne Arm | - | Copper | Reflux & flavor balance |

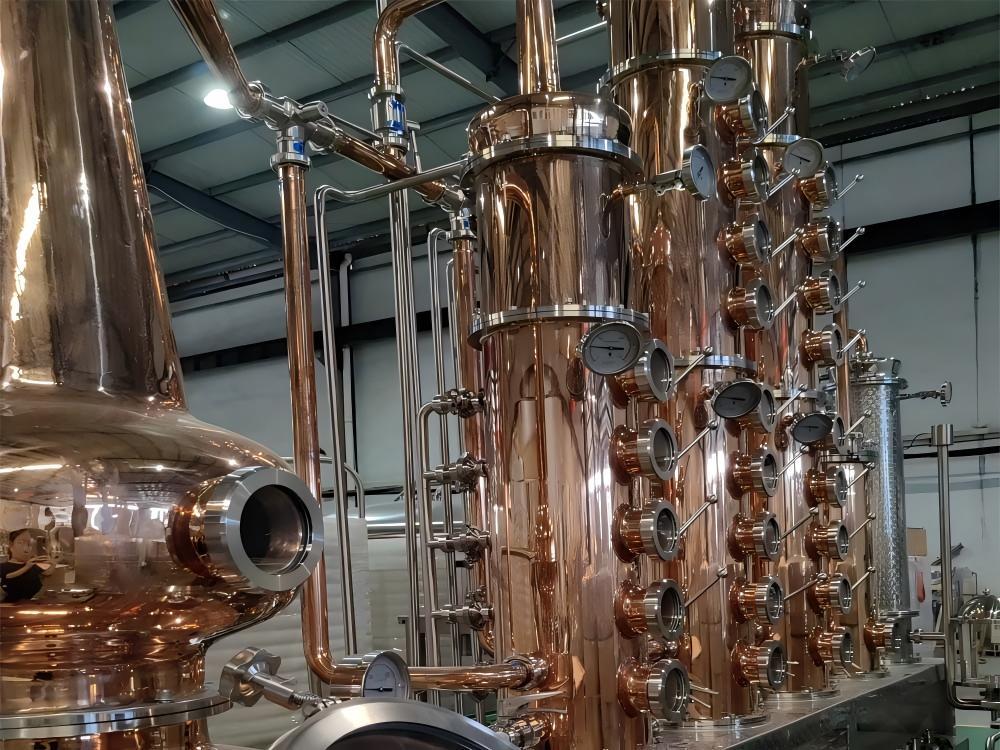

| Distillation | Distillation Column | 4 plates | Copper | Improve alcohol content |
| Distillation | Gin Basket | 1 set | SUS304 / Copper | Vapor infusion |
| Distillation | Condenser & Dephlegmator | - | SUS304 | Spirit cooling |
| Distillation | Parrot Outlet | - | SUS304 + Glass | Spirit collection & testing |
| CIP System | Portable CIP Cart | 100L × 2 | SUS304 | Cleaning in place |
Advantages
-High alcohol purity with 4 bubble plate distillation column
-Multi-function design for whiskey, gin, vodka, rum, brandy
-Semi-automatic operation with optional PLC control
-Durable copper & stainless steel construction
-Full CIP cleaning system for easy maintenance
Customization Options
-Heating method: Electric / Steam / Gas direct fire
-Column plates: 4–10 trays (according to spirit type)
-Gin basket: Stainless steel or copper
-PLC control with touch screen available
-Logo engraving on glass manholes
