Product Description

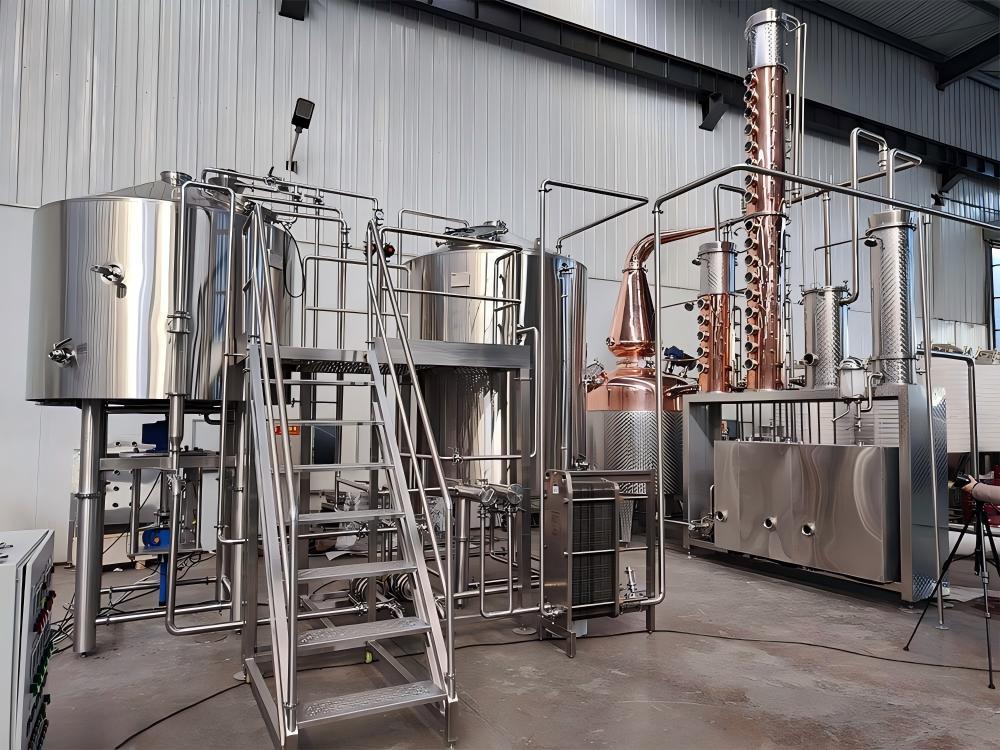

Our 1000L Complete Distillation Equipment is designed for professional craft distilleries producing whiskey, gin, vodka, rum, and other spirits. The system includes a full brewing brewhouse, fermentation tanks, glycol cooling system, and a 1000L copper pot still with column and gin basket.
All equipment is built with SUS304 stainless steel and red copper (for still pot, helmet, column trays), with strict welding, polishing, and pressure testing standards. Heating is by steam jacket, ensuring stable and efficient operation.
The system can be tailored with options such as PLC touchscreen control, explosion-proof motors, gin basket, and carbonation ports, providing flexibility for both traditional and modern craft distilleries.
Main Features
Turnkey solution: From malt milling to brewing, fermentation, distillation, and cooling.
Premium copper still: Enhances spirit flavor and aroma through copper catalysis.

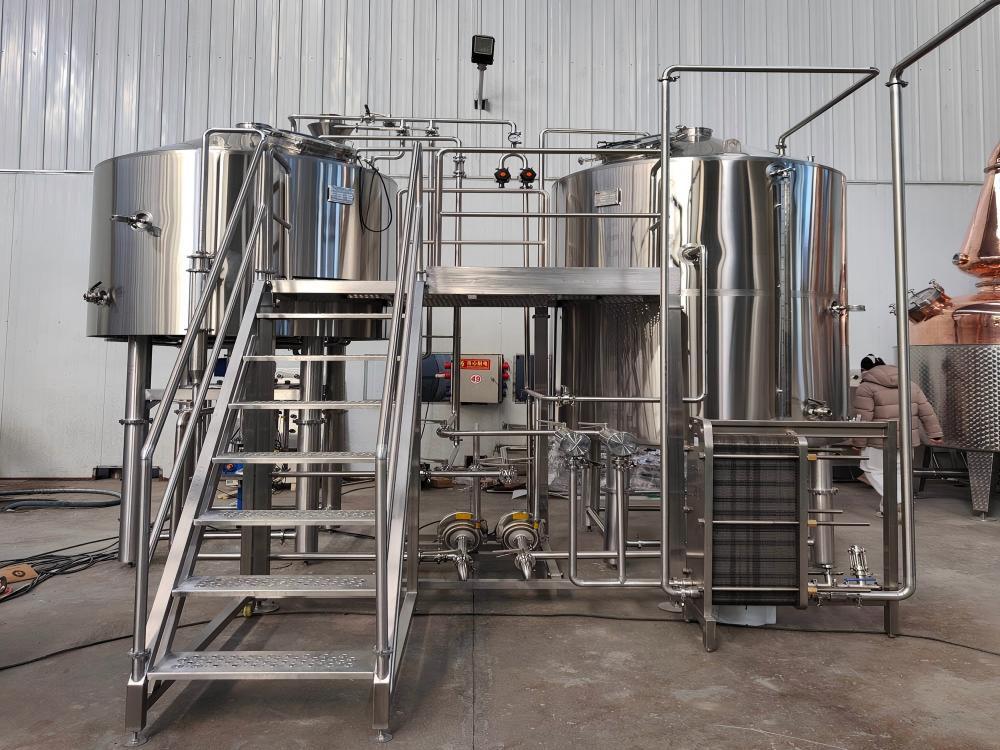

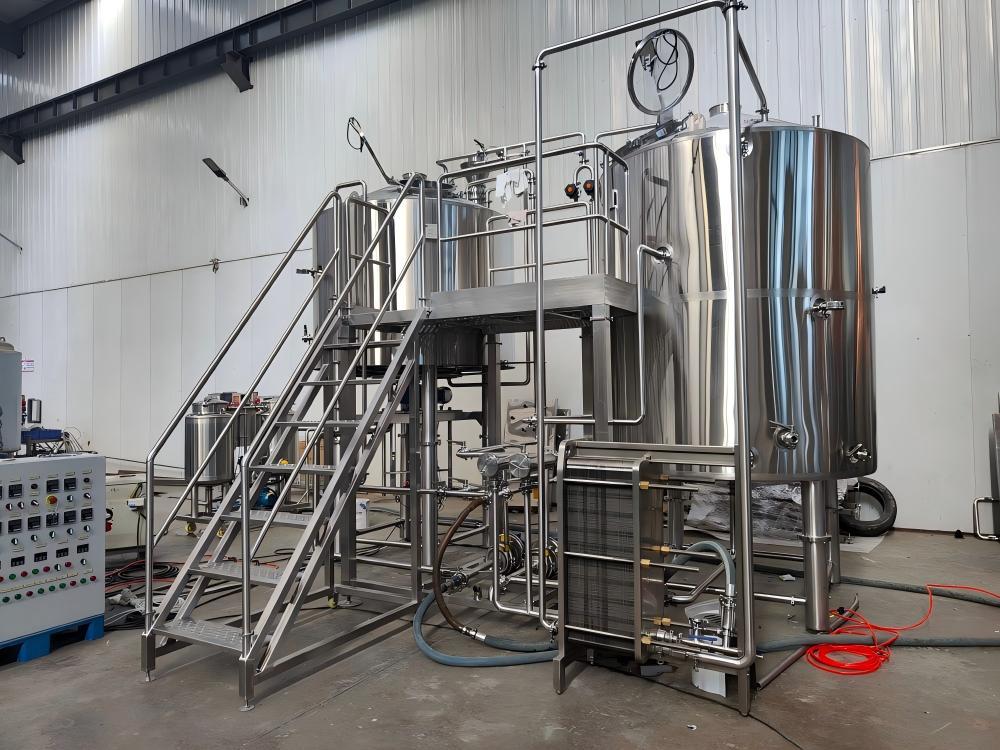

1000L brewhouse system: Steam-heated mash/lauter tun and hot water tank with full CIP system.
Fermentation tanks: Jacketed and insulated unitanks with glycol cooling, cone bottom design.

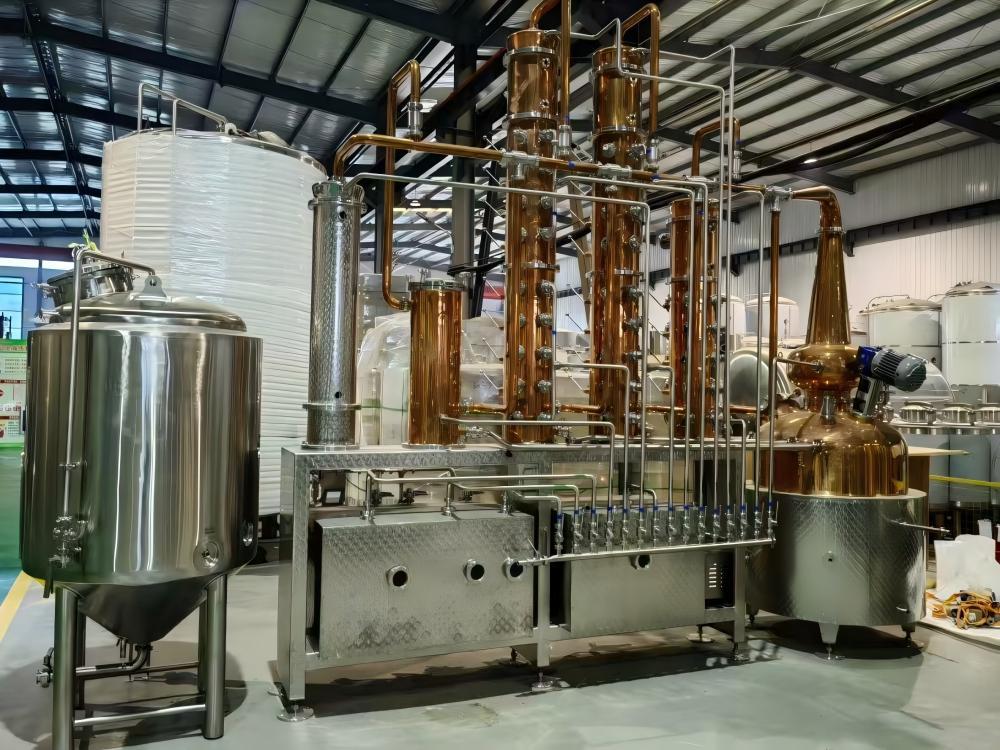

Flexible distillation: Includes helmet, swan neck, dephlegmator, bubble trays, gin basket, condenser, and parrot outlet.
Cooling & control: 2000L glycol water tank, 2×5P chillers, glycol transfer pumps, and control cabinet.
Sanitary design: Polished surfaces, TIG welding, CIP cleaning ports on all vessels.
Customization available: PLC automation, gin basket material (copper/stainless steel), additional trays, pressure valves, etc.
Durability guaranteed: All tanks tested with water/gas pressure, CIP cleaning, and leakage prevention.
Suitable spirits: Whiskey, gin, vodka, rum, brandy, tequila, and craft liquors.
Specification
Packing&Shipping
Before delivery, all of tanks and accessories included in beer brewery equipment will be packed with PE films and frame.
During loading, tanks will be wired with iron wire and bolt to fix them inside container. After delivery, loading drawing will be provided to customer for learning loading layout.
Company information
Shandong Tiantai Beer Equipment Co., Ltd. is a professional manufacturer and engineering solution provider specialized in brewing equipment. Since our establishment in 2012, we have focused on the R&D and manufacturing of craft beer brewing systems, offering complete solutions for mashing, fermentation, filling, and CIP. Our systems support brewery and workshop projects of 50 liters and above.
In recent years, we have continuously expanded our product lines to include distillation equipment (suitable for whisky, vodka, gin, etc.), kombucha fermentation systems, fruit wine brewing equipment, low-temperature fermentation units, and multi-purpose stainless steel tanks for storage, mixing, or chilling. These products are widely used across beverage, fermentation, and biopharmaceutical industries.
With a team of experienced engineers, we offer customized designs and tailored solutions. Whether you're looking for a complete brewing system or a single sanitary-grade stainless steel tank, feel free to contact us — we are committed to delivering one-stop solutions and reliable equipment support.
Our 1000L Complete Distillation Equipment is designed for professional craft distilleries producing whiskey, gin, vodka, rum, and other spirits. The system includes a full brewing brewhouse, fermentation tanks, glycol cooling system, and a 1000L copper pot still with column and gin basket.
All equipment is built with SUS304 stainless steel and red copper (for still pot, helmet, column trays), with strict welding, polishing, and pressure testing standards. Heating is by steam jacket, ensuring stable and efficient operation.
The system can be tailored with options such as PLC touchscreen control, explosion-proof motors, gin basket, and carbonation ports, providing flexibility for both traditional and modern craft distilleries.
Main Features
Turnkey solution: From malt milling to brewing, fermentation, distillation, and cooling.
Premium copper still: Enhances spirit flavor and aroma through copper catalysis.
1000L brewhouse system: Steam-heated mash/lauter tun and hot water tank with full CIP system.
Fermentation tanks: Jacketed and insulated unitanks with glycol cooling, cone bottom design.
Flexible distillation: Includes helmet, swan neck, dephlegmator, bubble trays, gin basket, condenser, and parrot outlet.
Cooling & control: 2000L glycol water tank, 2×5P chillers, glycol transfer pumps, and control cabinet.
Sanitary design: Polished surfaces, TIG welding, CIP cleaning ports on all vessels.
Customization available: PLC automation, gin basket material (copper/stainless steel), additional trays, pressure valves, etc.
Durability guaranteed: All tanks tested with water/gas pressure, CIP cleaning, and leakage prevention.
Suitable spirits: Whiskey, gin, vodka, rum, brandy, tequila, and craft liquors.
Specification
| Section | Key Equipment | Description |
| Malt Milling | Malt Miller | 300–500kg/hr, adjustable rollers, CE motor |
| Brewhouse | 1000L Mash/Lauter Tun | SUS304, steam heating, rakes, spent grain outlet |
| 1000L Hot Water Tank | SUS304, steam jacketed, insulated | |
| Work Platform | Stainless steel, non-slip, with railing | |
| Pumps & Piping | SUS304 sanitary centrifugal pumps, valves, piping | |
| Heat Exchanger | 10m² tubular wort cooler | |
| Fermentation | 1000L Fermentation Tanks ×4 | SUS304, jacketed, insulated, cone bottom, glycol |
| Cooling Unit | 2000L Glycol Water Tank | SUS304, insulated |
| 5P Glycol Chiller ×2 | Copeland/Danfoss compressors, -5℃ outlet | |
| Glycol Transfer Set | Pumps, solenoid valves, insulated pipelines | |
| Distillation Unit | 1000L Copper Still Pot | TP2 red copper, steam jacket, agitator |
| Helmet, Swan Neck, Dephlegmator | Copper + SS304 construction | |
| Distillation Column | Copper bubble plates (4 trays), sight glasses | |
| Gin Basket | Stainless steel (copper optional) | |
| Condenser & Parrot Outlet | Shell-and-tube, alcohol meter, glass parrot | |
| Spirit Receiver Tanks | 100L heads, 150L hearts, 300L tails | |
| CIP System | 100L×2 Portable CIP Cart | Acid & caustic tanks, pump, sanitary piping |
| Control System | Control Cabinet | Brewhouse + fermentation + distillation control, VFDs, CE/UL parts |
Packing&Shipping
Before delivery, all of tanks and accessories included in beer brewery equipment will be packed with PE films and frame.
During loading, tanks will be wired with iron wire and bolt to fix them inside container. After delivery, loading drawing will be provided to customer for learning loading layout.
Company information
Shandong Tiantai Beer Equipment Co., Ltd. is a professional manufacturer and engineering solution provider specialized in brewing equipment. Since our establishment in 2012, we have focused on the R&D and manufacturing of craft beer brewing systems, offering complete solutions for mashing, fermentation, filling, and CIP. Our systems support brewery and workshop projects of 50 liters and above.
In recent years, we have continuously expanded our product lines to include distillation equipment (suitable for whisky, vodka, gin, etc.), kombucha fermentation systems, fruit wine brewing equipment, low-temperature fermentation units, and multi-purpose stainless steel tanks for storage, mixing, or chilling. These products are widely used across beverage, fermentation, and biopharmaceutical industries.
With a team of experienced engineers, we offer customized designs and tailored solutions. Whether you're looking for a complete brewing system or a single sanitary-grade stainless steel tank, feel free to contact us — we are committed to delivering one-stop solutions and reliable equipment support.
