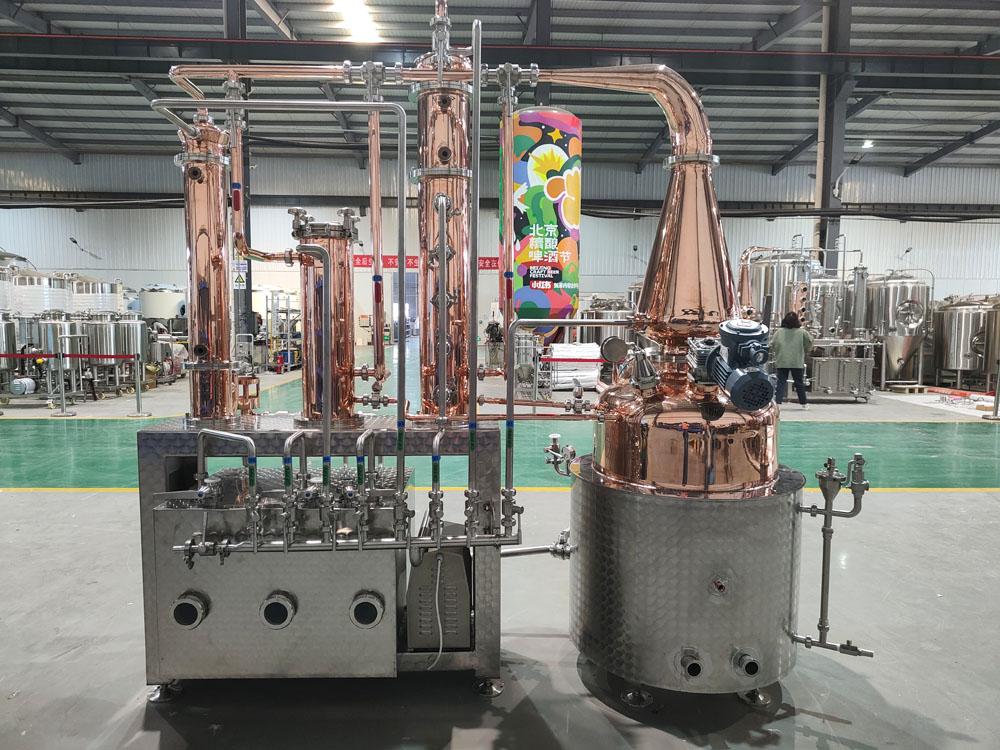

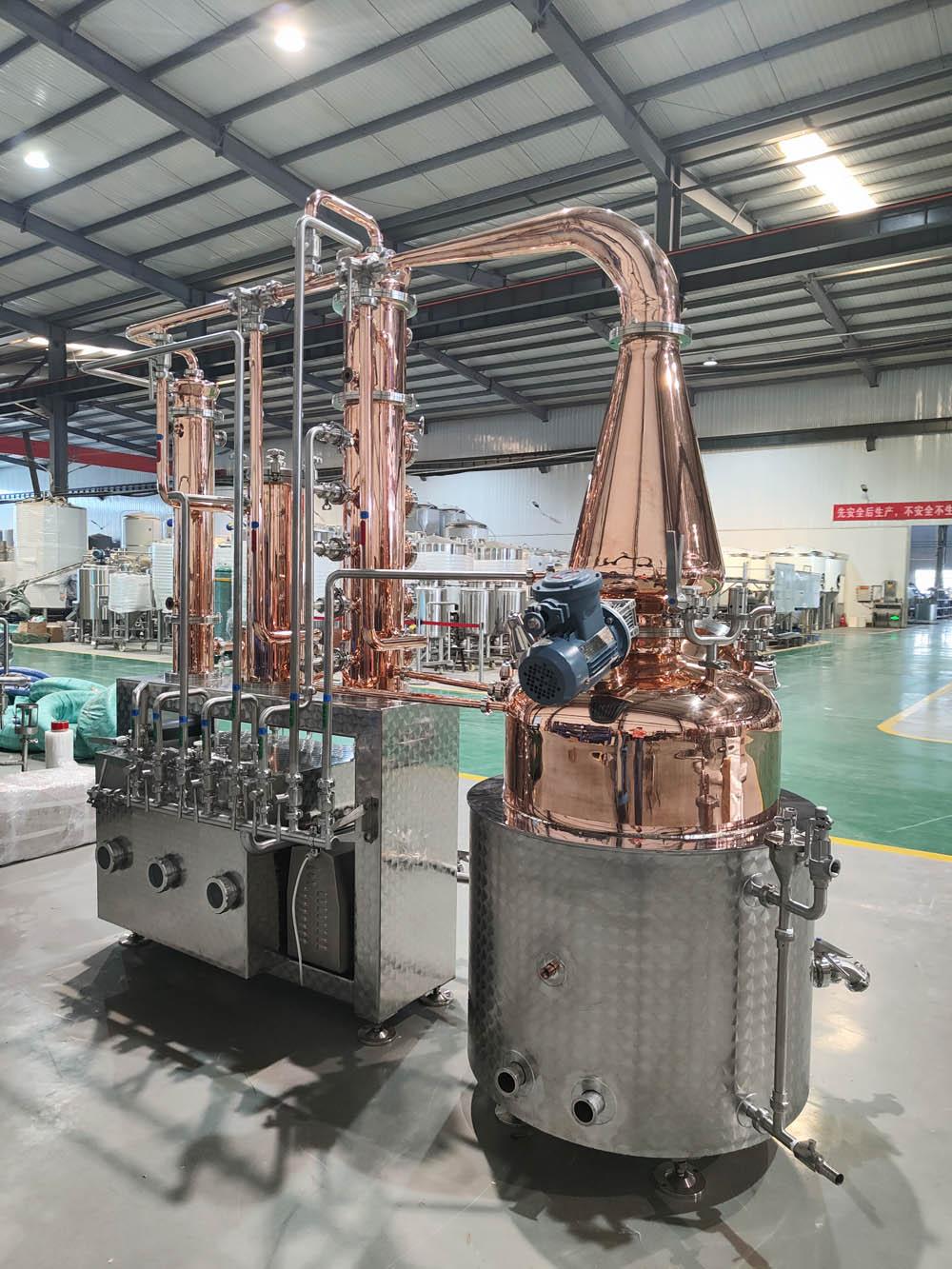

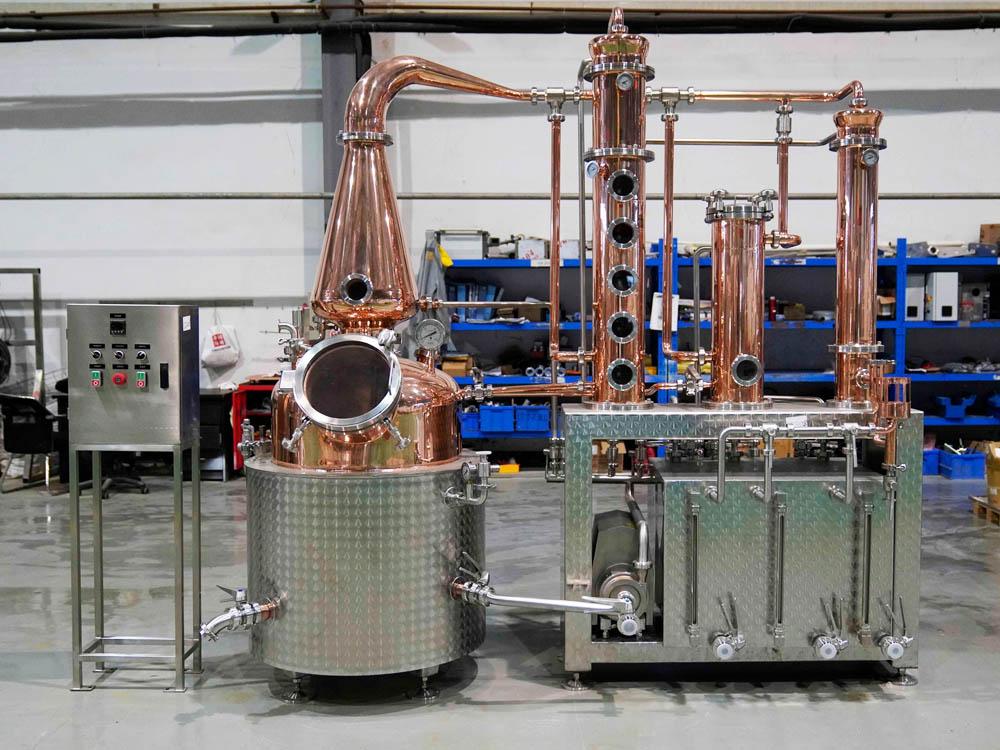

300L Copper Still Alcohol Distillation Unit
- Jul 22, 2025
- 63
- tiantai
Product Overview
The 300L distiller strikes the ideal balance between capacity and efficiency. Designed for consistent output and purity, this unit is widely used by boutique distilleries looking to scale up without compromising on quality or control.
Technical Specifications of 300L Alcohol Distillation Equipment
Key Features
**Polished stainless steel boiler with copper column
**Bubble cap or sieve plate column (custom options)
**Dephlegmator with sight glasses for high-proof control

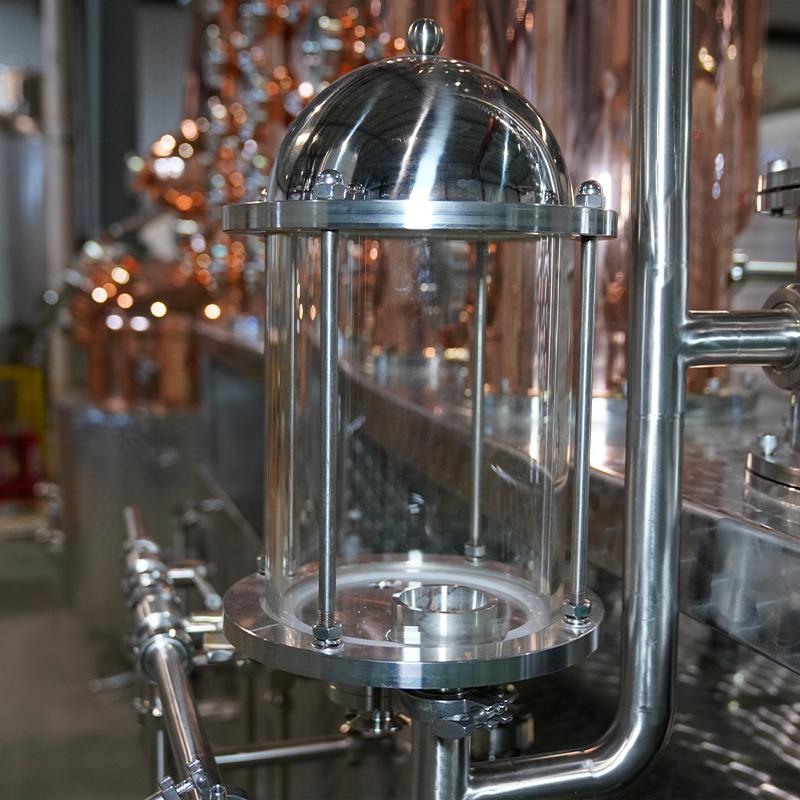

**Parrot outlet with spirit strength monitoring
**Built-in CIP system for easy cleaning
**Pressure gauges & safety valve included
**Custom control panel (manual or semi-automatic)
Perfect For
Craft distillers & spirit startups
Pilot testing & product development
Hospitality & boutique beverage brands
Educational or research facilities
Optional Auxiliary equipment in 300L Alcohol Distillation Equipment
To ensure efficient and continuous operation of the distillation system, the following auxiliary equipment can be included as part of the complete solution:
Packaging & Delivery
Export-grade packaging (wooden case)
CE / ISO / SGS compliant
Lead time: [40-50 working days]
Worldwide shipping with DDP available
Why Choose Our 300L Alcohol Distillation Equipment?
* One machine, multiple functions
* Built for quality, flexibility, and scalability
* Customizable layout and distilling technology
* Expert support for installation and training
Need Help Choosing the Right Size?
Contact us to get expert support and layout advice — we’ll help you select the perfect system for your production needs.
Let’s build your distillery dream together!
The 300L distiller strikes the ideal balance between capacity and efficiency. Designed for consistent output and purity, this unit is widely used by boutique distilleries looking to scale up without compromising on quality or control.
Technical Specifications of 300L Alcohol Distillation Equipment
| Item | Technical Specification |
| Effective Volume | 300 Liters |
| Daily Output Approx | 30–60 Litres |
| Heating Method | Electric / Steam (optional) |
| Power Supply | 220V / 380V / Custom |
| Still Pot | Interior Shell: TP2 Red Copper; Exterior Shell: SUS304 stainless steel; Steam Heated |

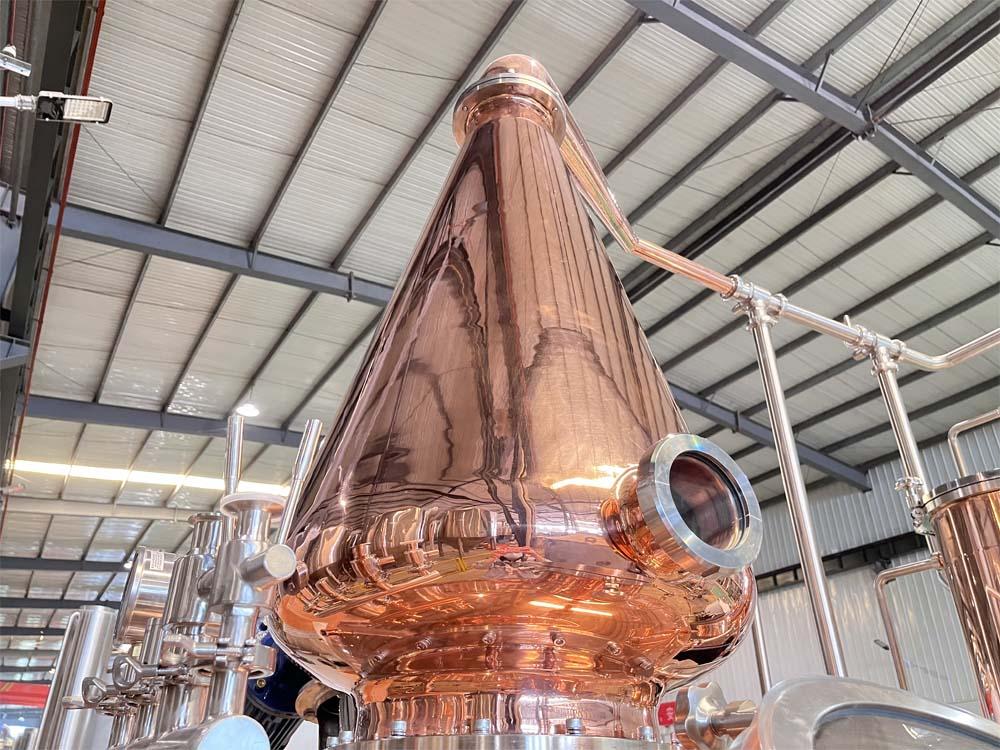

| Helmet | TP2 Red Copper |
| Swan Neck and Lyne Arm | TP2 Red Copper |
| Dephlegmator | 304 Stainless steel (TP2 Red Copper is optional) |
| Distill Column | TP2 Red Copper, 4 Trays (Customized) |
| Gin Basket | 304 Stainless steel (TP2 Red Copper is optional) |
| Condensor | 304 Stainless steel (TP2 Red Copper is optional) |
| Parrot Outlet | 304 Stainless steel (TP2 Red Copper is optional) |

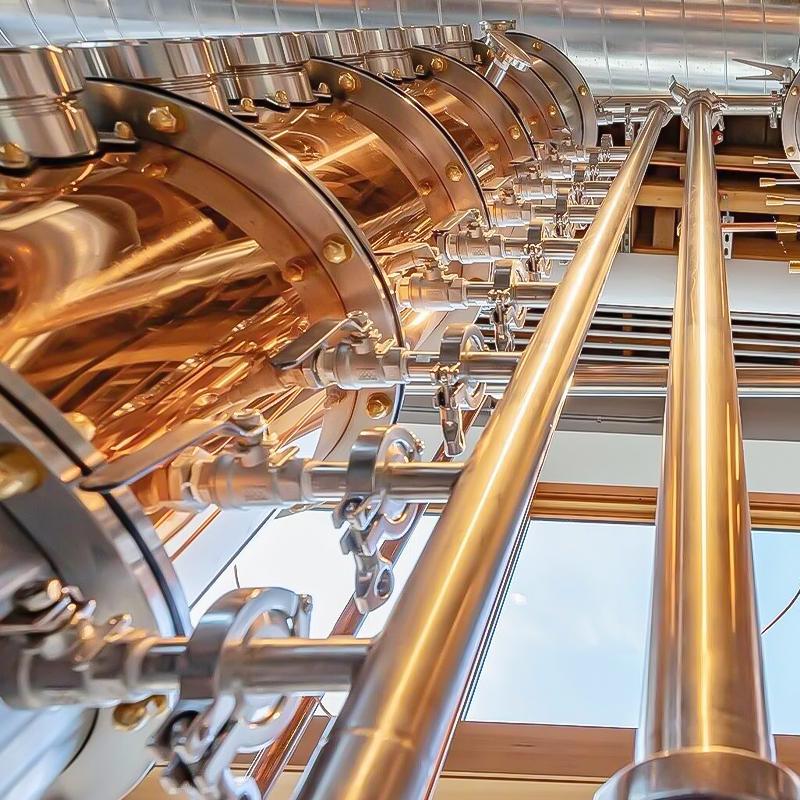

| Alcohol Vapor Pipeline&Valves | 304 Stainless steel (TP2 Red Copper is optional) |
| CIP Pipeline & Valves | 304 Stainless steel |
| Supporting Frame | 304 Stainless steel |
| Control Cabinet | Instrumental Control Panel (PLC is optional) |
| Spirit Receiver Tanks | 304 Stainless steel Foreshots head, Middle cut and Feints Receiver Tank |
Key Features
**Polished stainless steel boiler with copper column
**Bubble cap or sieve plate column (custom options)
**Dephlegmator with sight glasses for high-proof control
**Parrot outlet with spirit strength monitoring
**Built-in CIP system for easy cleaning
**Pressure gauges & safety valve included
**Custom control panel (manual or semi-automatic)
Perfect For
Craft distillers & spirit startups
Pilot testing & product development
Hospitality & boutique beverage brands
Educational or research facilities
Optional Auxiliary equipment in 300L Alcohol Distillation Equipment
To ensure efficient and continuous operation of the distillation system, the following auxiliary equipment can be included as part of the complete solution:
| Equipment Name | Description |
| Mill | Crushing Malt, Raw Grain etc |
| Mash tun or Mash/Lauter tun | Malt/Grain Mashing and Lautering |
| Hot Water Tank | Supplying Hot Water for Mashing, Sparging, Cleaning etc |
| Cold Water Tank | Supplying Cold Water for Wort Cooling, Beer Cooling, Distilling etc |
| Fermentation Tank | Fermenting wort/wash |
| Glycol Water Tank | Cooling Cold Water and Beer etc |
| Glycol Chiller | Chilling Glycol Water |
| CIP |
Cleaning |
Packaging & Delivery
Export-grade packaging (wooden case)
CE / ISO / SGS compliant
Lead time: [40-50 working days]
Worldwide shipping with DDP available
Why Choose Our 300L Alcohol Distillation Equipment?
* One machine, multiple functions
* Built for quality, flexibility, and scalability
* Customizable layout and distilling technology
* Expert support for installation and training
Need Help Choosing the Right Size?
Contact us to get expert support and layout advice — we’ll help you select the perfect system for your production needs.
Let’s build your distillery dream together!
