General Introduction of 600L Craft Beer Brewery Equipment

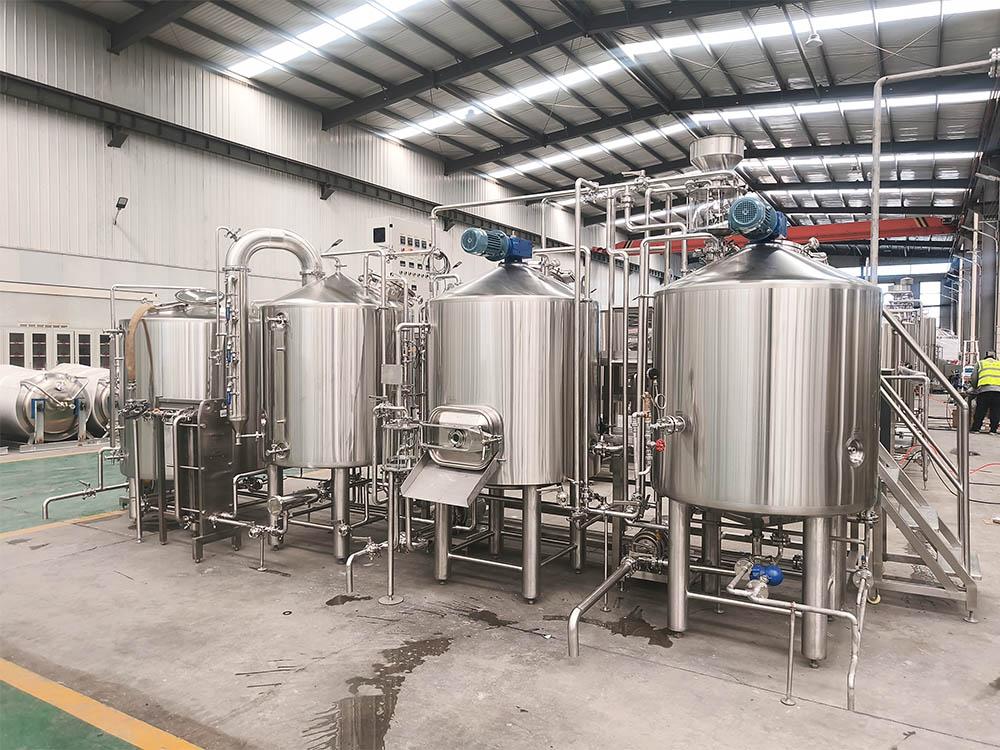

A 600L steam 3-vessel brewhouse is a compact, professional beer brewing system widely used in microbreweries, brewpubs, restaurants, and pilot brewing setups. It is designed to produce 600 liters of wort per batch. The brewhouse tanks are heated by steam, which assure efficient heating and uniform thermal control. The brewhouse is combined with MT + LT + KWT + HLT. The HLT is 1200L, which recycle hot water from heat exchanger, the recycled hot water will be used for next batch mashing or sparging.
Quick Overview of 600L Craft Beer Brewery Equipment
Main Configurations on 600L Craft Beer Brewery Equipment
Contact us immediately to get latest specification and cost of craft beer brewery equipment.
A 600L steam 3-vessel brewhouse is a compact, professional beer brewing system widely used in microbreweries, brewpubs, restaurants, and pilot brewing setups. It is designed to produce 600 liters of wort per batch. The brewhouse tanks are heated by steam, which assure efficient heating and uniform thermal control. The brewhouse is combined with MT + LT + KWT + HLT. The HLT is 1200L, which recycle hot water from heat exchanger, the recycled hot water will be used for next batch mashing or sparging.
Quick Overview of 600L Craft Beer Brewery Equipment
| Output/Brew | 600L |
| Brew/day | 1 - 2 |
| Output/Week | 800L-6000L/week based on different configuration |
| Electric Supply | Customized |
| Heating Source | Steam (Electric Optional) |
| Area Request | >30M2 |
| Brewmaster | 1 - 2 |
| Mashing method | Infusion,multi-step infusion |
Main Configurations on 600L Craft Beer Brewery Equipment
| Brewery Equipment | Components | Specifications |
| Miller | Grain Miller |
- 300 - 500 kg/hr - Stainless Steel - 1.1kw |
| Brewhouse Unit | MT |
- 600L - 25% head space - Steam heating with insulation - Agitator - Glass manway - CIP |
| LT |
- 600L - 25% head space - Grain rake with scrapper - False Bottom - Glass Manway - CIP |
|
| KWT |
- 600L - 30% head space - Glass Manway - Tangential inlet - CIP |
|
| HLT |
- 1200L - 15% head space - Stainless Steel Manway - CIP |
|
| Auxiliary Equipment |
- 3M3 pump - Water mixing station - Water cooling station - 10L glass wort grant - 6M2 heat exchanger - Flowmeter |
|
| Fermentation Unit | Beer Fermentation Tank |
- 600L/1200L - 25% head space - Jacketed and insulated - Conical bottom - Pressure relief valve - Glycol inlet and outlet - Sample valve - Side manway - Dry Hopping Port - CIP - Racking arm - Temperature and pressure gauge |
| Bright Beer Tank (Optional) |
- 600L/1200L - 25% head space - Jacketed and insulated - Conical bottom - Pressure relief valve - Glycol inlet and outlet - Sample valve - Side manway - Dry Hopping Port - CIP - Racking arm - Temperature and pressure gauge |
|
| Glycol cooling system | Glycol cooling tank |
- 2000L - Thermowell - Top manway - CIP |
| Cold liquor tank (Optional) |
- Thermowell - Top manway - CIP - Cooling jacket |
|
| Chiller |
- 3HP - Freon R410A or R407C |
|
| Glycol Piping |
- Stainless Steel - PPR - UPVC |
|
| Control Unit | Brewhouse Control |
- Temperature control - Pump on/off control - Agitator on/off control - VFD control - PID/PLC |
| Fermentation Control |
- Temperature control - PID/PLC |
|
| CIP System | 100 CIP |
- Caustic tank - Acid tank - Pump - Control cabinet |
| Auxiliary Equipment | As design |
- Steam Boiler - Keg Filler - Keg Washer - Air Compressor |
Contact us immediately to get latest specification and cost of craft beer brewery equipment.
