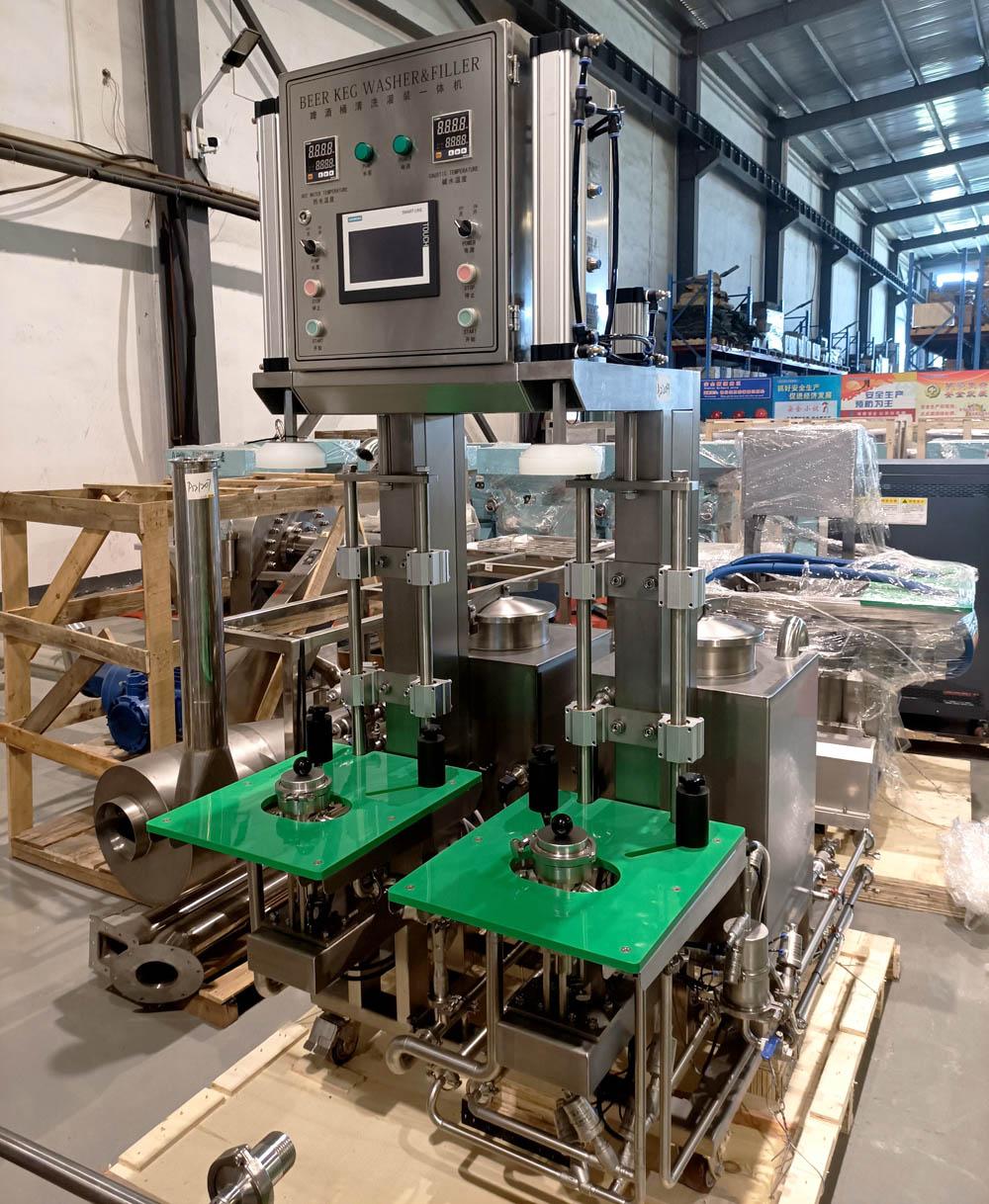

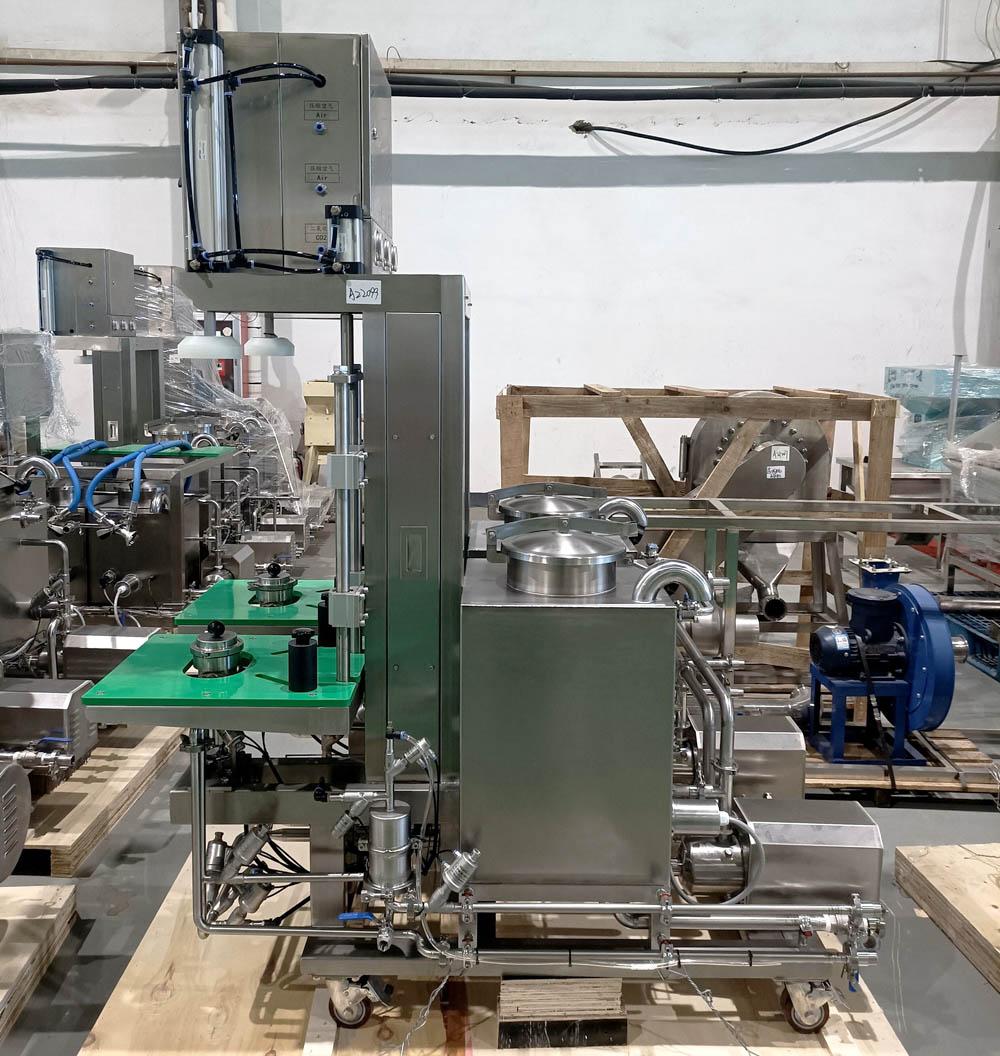

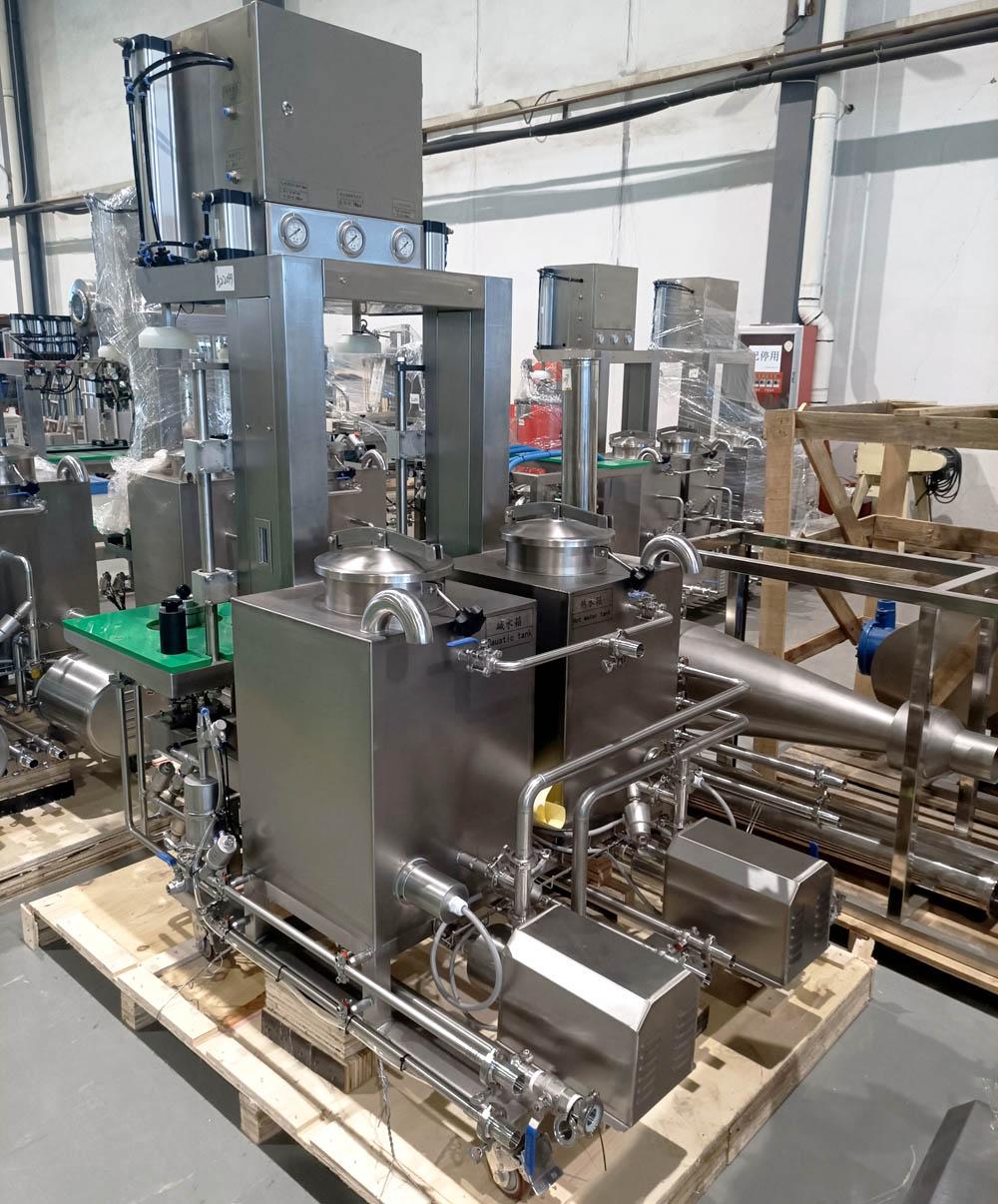

Combined 1-Staion Keg Rinser and 1-Station Keg Filler
- Apr 16, 2026
- 62
- tiantai
We proudly present the Combined 1-Station Keg Rinser and 1-Station Keg Filler, an innovative, compact, and highly efficient solution for breweries seeking to streamline their keg rinsing and filling process. Designed for small to medium-scale breweries, brewpubs, and craft beer operations, this integrated kegging system ensures the highest levels of hygiene, operational efficiency, and product consistency. By combining rinsing and filling in a single machine, the kegging system optimizes brewery workflow, reduces labor requirements, and maximizes productivity.
With a 1-station rinser and 1-station filler, breweries can efficiently clean and fill kegs without the need for multiple machines or manual intervention. The system’s dual functionality ensures that each keg is thoroughly rinsed with water or cleaning solution before being filled, eliminating cross-contamination risks and preserving the quality and flavor of the beer.
I. Detailed Specification
III. Main Function and Feature
1.The equipment is composed of one washing station and one filling station. After washing process is done, manually put the barrel to the filling station for filling.
2.Automatic control by PLC, all parameters can be adjusted through touch screen.
3.Cleaning and filling process can be finished in this machine at one time.
4.All use pneumatic double acting Angle seat valve which could ensure the action sensitivity and reliability
5.With CIP automatic cleaning system
6.With 2-3 tanks, which are heated automatically, feed water automatically ,with steam sterilization function.
7.Caustic and sanitizer are recycled, with Germany import flow meter, accurate measurement, high precision
III. Working process
* Filling station: fix the keg—cylinder press, table going down—CO2 blow keg spear—CO2 pressurize—filling and counting—stop —table going up—take the keg
* Washing station: fix the keg—cylinder press, table going down—drain residual—clean water wash—drain—caustic wash—recycle—hot water wash—drain-sanitizer wash—recycle—clean water wash—drain—steam sterilization—steam hold-CO2 purge—hot water wash-clean water wash-CO2 pressurize-table going up—take the keg
IV. Applications in Breweries
This kegging system is ideal for a wide range of brewery applications.
- Craft Breweries and Brewpubs: Efficiently clean and fill kegs for local distribution or on-site consumption.
- Medium-Scale Production Facilities: Integrates seamlessly into production lines, supporting high-quality output and consistent filling.
- Specialty Beer Producers: Maintains delicate flavors, carbonation, and clarity, ensuring that every keg represents the brewer’s intended quality.
The Tiantai Combined 1-Station Keg Rinser and 1-Station Keg Filler provides breweries with an integrated, efficient, and reliable solution for keg cleaning and filling. By combining two essential functions into a single unit, the system streamlines operations, reduces labor, and enhances product quality. Whether you are a craft brewery, brewpub, or medium-scale production facility, this system ensures that every keg leaving your brewery is clean, accurately filled, and ready for distribution or consumption.
With Tiantai Beer Equipment Co, you gain not only high-quality equipment but also a trusted partner committed to supporting your brewery’s growth, efficiency, and excellence. The Combined Keg Filler and Rinser is the ideal choice for breweries looking to optimize their kegging process, maintain the highest hygiene standards, and consistently deliver exceptional beer to their customers.
With a 1-station rinser and 1-station filler, breweries can efficiently clean and fill kegs without the need for multiple machines or manual intervention. The system’s dual functionality ensures that each keg is thoroughly rinsed with water or cleaning solution before being filled, eliminating cross-contamination risks and preserving the quality and flavor of the beer.
I. Detailed Specification
| Capacity | 20-30 Kegs Per Hour |
| Power | 2.2KW |
| Keg | 5L-50L |
| CO2 Pressure | 0.2-0.3MPA |
| Compressed Air Pressure | 0.5-0.7MPA |
| Power | 3-Phase |
| Size | 1000x1000x2050mm |
| Weight | 300KG |
III. Main Function and Feature
1.The equipment is composed of one washing station and one filling station. After washing process is done, manually put the barrel to the filling station for filling.
2.Automatic control by PLC, all parameters can be adjusted through touch screen.
3.Cleaning and filling process can be finished in this machine at one time.
4.All use pneumatic double acting Angle seat valve which could ensure the action sensitivity and reliability
5.With CIP automatic cleaning system
6.With 2-3 tanks, which are heated automatically, feed water automatically ,with steam sterilization function.
7.Caustic and sanitizer are recycled, with Germany import flow meter, accurate measurement, high precision
III. Working process
* Filling station: fix the keg—cylinder press, table going down—CO2 blow keg spear—CO2 pressurize—filling and counting—stop —table going up—take the keg
* Washing station: fix the keg—cylinder press, table going down—drain residual—clean water wash—drain—caustic wash—recycle—hot water wash—drain-sanitizer wash—recycle—clean water wash—drain—steam sterilization—steam hold-CO2 purge—hot water wash-clean water wash-CO2 pressurize-table going up—take the keg
IV. Applications in Breweries
This kegging system is ideal for a wide range of brewery applications.
- Craft Breweries and Brewpubs: Efficiently clean and fill kegs for local distribution or on-site consumption.
- Medium-Scale Production Facilities: Integrates seamlessly into production lines, supporting high-quality output and consistent filling.
- Specialty Beer Producers: Maintains delicate flavors, carbonation, and clarity, ensuring that every keg represents the brewer’s intended quality.
The Tiantai Combined 1-Station Keg Rinser and 1-Station Keg Filler provides breweries with an integrated, efficient, and reliable solution for keg cleaning and filling. By combining two essential functions into a single unit, the system streamlines operations, reduces labor, and enhances product quality. Whether you are a craft brewery, brewpub, or medium-scale production facility, this system ensures that every keg leaving your brewery is clean, accurately filled, and ready for distribution or consumption.
With Tiantai Beer Equipment Co, you gain not only high-quality equipment but also a trusted partner committed to supporting your brewery’s growth, efficiency, and excellence. The Combined Keg Filler and Rinser is the ideal choice for breweries looking to optimize their kegging process, maintain the highest hygiene standards, and consistently deliver exceptional beer to their customers.
