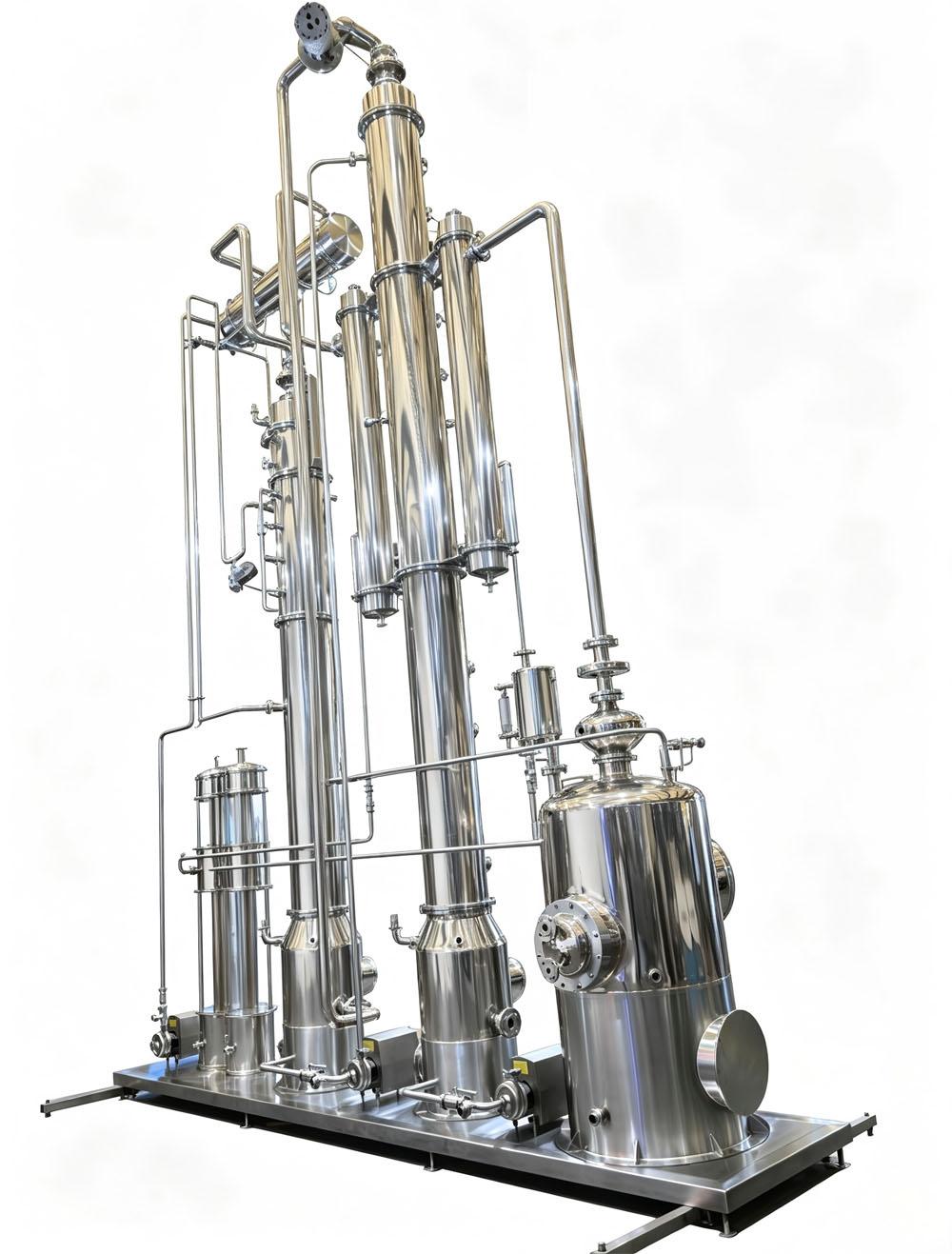

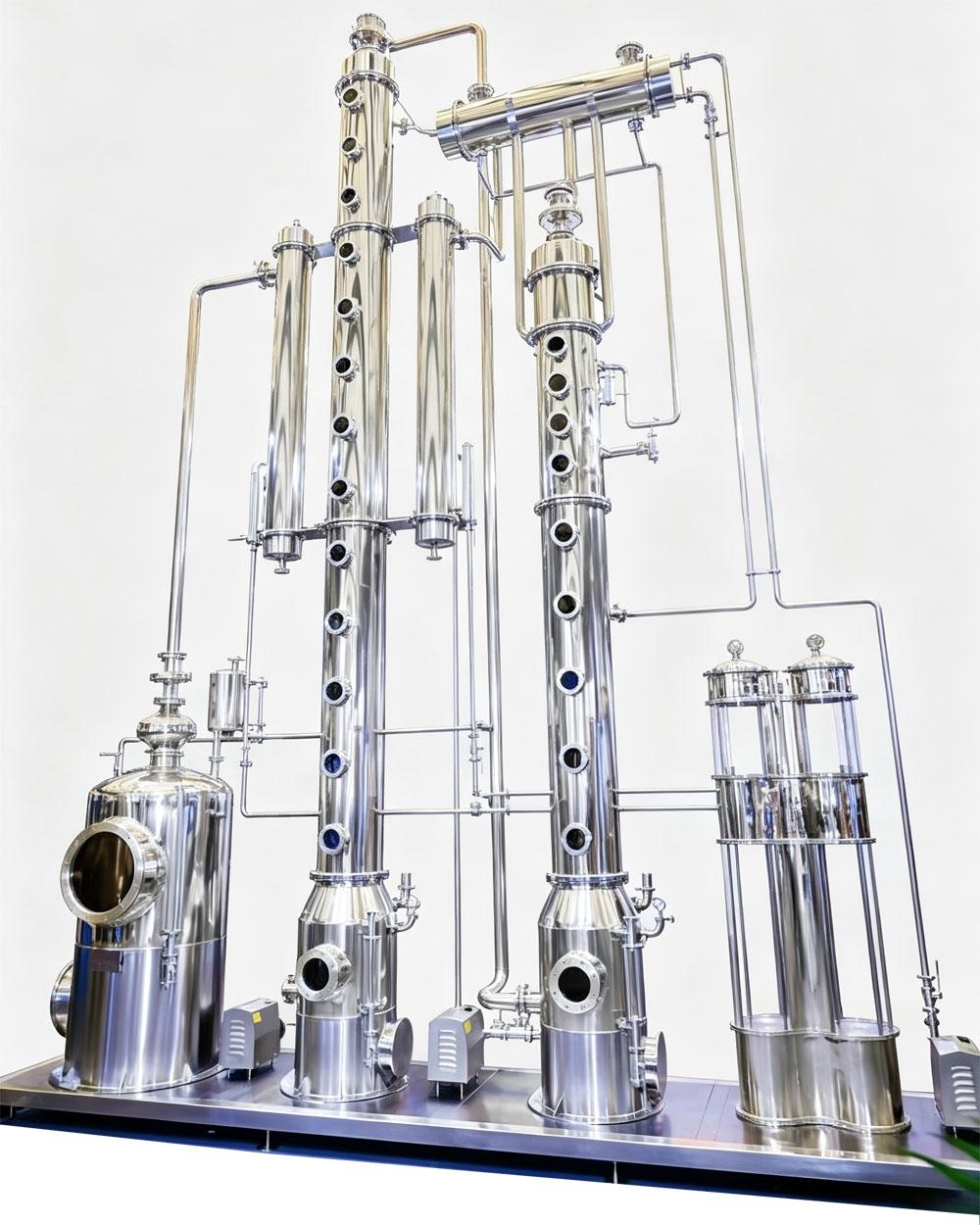

1000L/H Continuous Distillation System
- Jun 24, 2026
- 108
- tiantai
Efficient, Stable and High-Purity Alcohol Distillation System by Tiantai Brewtech
The 1000L/H Continuous Distillation System is designed for industrial-scale alcohol production requiring high efficiency, stable operation, low energy consumption, and consistent spirit quality. The distillation system utilizes a two-column continuous distillation process consisting of a stripping column and a rectification column, enabling continuous fermented mash feed, continuous distillation, and continuous discharge.
Compared with traditional batch distillation system, continuous distillation system significantly improves alcohol production capacity, reduces labor requirements, and delivers more consistent alcohol quality, making it ideal for neutral grain spirit (NGS), industrial food grade alcohol, vodka base spirit, and other high-purity alcohol applications.
I. Main Features of 1000L/H Continuous Distillation System
1.) Continuous Production
The distillation system operates continuously, allowing uninterrupted feeding and alcohol recovery, resulting in higher productivity and improved operational efficiency.
2.) High Alcohol Purity
The combination of a perforated stripping column and packed rectification column enables effective separation of alcohol from impurities, producing high-strength spirit with excellent purity.
3.) Energy-Efficient Design
A 500L reboiler provides stable steam heating for the stripping column. The optimized column design improves heat utilization and reduces steam consumption.
4.) Automated Control
A stainless steel control cabinet integrates process monitoring and control functions, allowing operators to easily manage temperatures, flow rates, and system operation.
5.) Sanitary Construction
All product-contact components are manufactured from high-quality food-grade stainless steel, ensuring compliance with beverage and alcohol production standards.
II. Standard Configuration of 1000L/H Continuous Distillation System

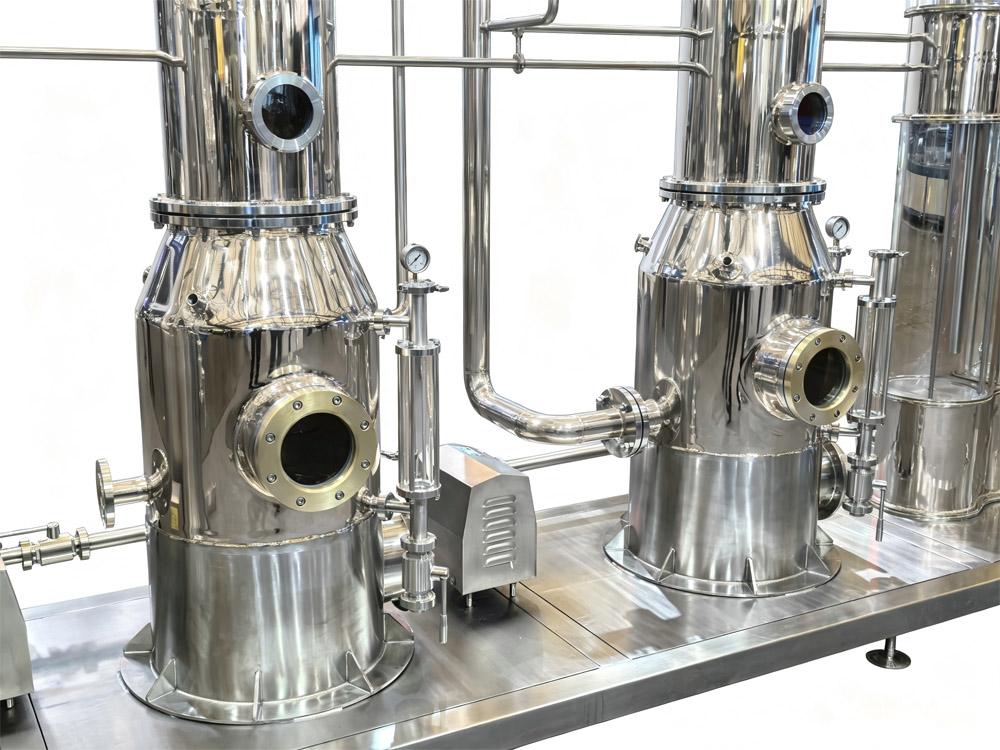

1.) Stripping Section
- 12-Plate Perforated Stripping Column
- 500L Stainless Steel Reboiler
- Continuous Feed Inlet System
- Steam Distribution System
- Bottoms Discharge System

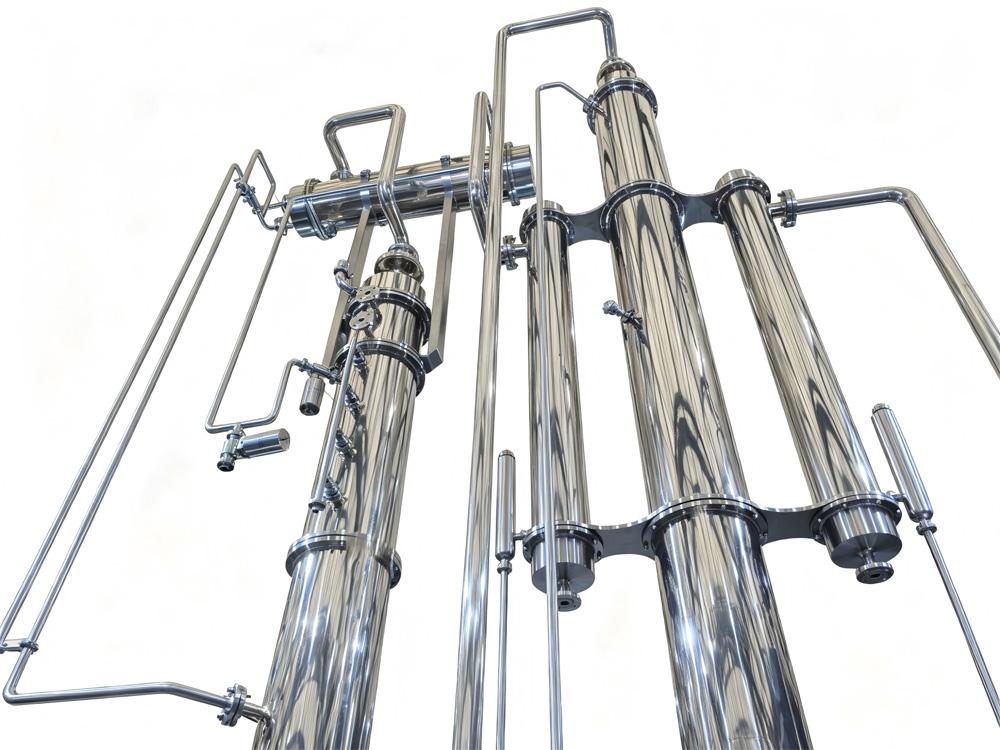

2.) Rectification Section
- Packed Rectification Column
- High-Efficiency Structured Packing
- Alcohol Purification Section
- Reflux Distribution System
3.) Condensation & Reflux System
- Stainless Steel Condenser
- Reflux Drum
- Reflux Control System
- Distillate Collection Outlet
4.) Piping & Valve System
- Alcohol Vapor Pipeline & Valves
- CIP Pipeline & Valves
- Product Transfer Pipeline
- Sanitary Stainless Steel Fittings
5.) Auxiliary Equipment
- Transfer Pump
- Stainless Steel Control Cabinet
- Temperature Instruments
- Pressure Instruments
- Flow Control Components
III. Technical Specifications of 1000L/H Continuous Distillation System
IV. Applications of 1000L/H Continuous Distillation System
The 1000L/hr continuous distillation system is suitable for:
- Neutral Grain Spirit (NGS) Production
- Vodka Base Spirit Production
- Industrial Food Grade Alcohol Production
- Agricultural Alcohol Processing
- Distillery Expansion Projects
- Continuous Spirit Refining Operations
V. Why Choose Tiantai Brewtech?
With years of experience in brewing and distillation system manufacturing, Tiantai Brewtech provides reliable, efficient, and customized alcohol production solutions for customers worldwide. Our engineering team can customize column height, plate quantity, packing type, automation level, and alcohol purity targets according to specific production requirements.
Whether you are producing beverage-grade neutral spirits or industrial alcohol, Tiantai Brewtech's continuous distillation systems deliver the performance, reliability, and efficiency required for modern distillation operations.
Contact us today for a customized proposal and technical consultation.
The 1000L/H Continuous Distillation System is designed for industrial-scale alcohol production requiring high efficiency, stable operation, low energy consumption, and consistent spirit quality. The distillation system utilizes a two-column continuous distillation process consisting of a stripping column and a rectification column, enabling continuous fermented mash feed, continuous distillation, and continuous discharge.
Compared with traditional batch distillation system, continuous distillation system significantly improves alcohol production capacity, reduces labor requirements, and delivers more consistent alcohol quality, making it ideal for neutral grain spirit (NGS), industrial food grade alcohol, vodka base spirit, and other high-purity alcohol applications.
I. Main Features of 1000L/H Continuous Distillation System
1.) Continuous Production
The distillation system operates continuously, allowing uninterrupted feeding and alcohol recovery, resulting in higher productivity and improved operational efficiency.
2.) High Alcohol Purity
The combination of a perforated stripping column and packed rectification column enables effective separation of alcohol from impurities, producing high-strength spirit with excellent purity.
3.) Energy-Efficient Design
A 500L reboiler provides stable steam heating for the stripping column. The optimized column design improves heat utilization and reduces steam consumption.
4.) Automated Control
A stainless steel control cabinet integrates process monitoring and control functions, allowing operators to easily manage temperatures, flow rates, and system operation.
5.) Sanitary Construction
All product-contact components are manufactured from high-quality food-grade stainless steel, ensuring compliance with beverage and alcohol production standards.
II. Standard Configuration of 1000L/H Continuous Distillation System
1.) Stripping Section
- 12-Plate Perforated Stripping Column
- 500L Stainless Steel Reboiler
- Continuous Feed Inlet System
- Steam Distribution System
- Bottoms Discharge System
2.) Rectification Section
- Packed Rectification Column
- High-Efficiency Structured Packing
- Alcohol Purification Section
- Reflux Distribution System
3.) Condensation & Reflux System
- Stainless Steel Condenser
- Reflux Drum
- Reflux Control System
- Distillate Collection Outlet
4.) Piping & Valve System
- Alcohol Vapor Pipeline & Valves
- CIP Pipeline & Valves
- Product Transfer Pipeline
- Sanitary Stainless Steel Fittings
5.) Auxiliary Equipment
- Transfer Pump
- Stainless Steel Control Cabinet
- Temperature Instruments
- Pressure Instruments
- Flow Control Components
III. Technical Specifications of 1000L/H Continuous Distillation System
| Item | Specification |
| Capacity | 1000L Fermented Mash Feed per Hour |
| Distillation Type | Continuous Distillation |
| Column Configuration | Two Columns |
| Stripping Column | 12 Perforated Plates |
| Reboiler Volume | 500L |
| Rectification Column | Packed Column |
| Material | SUS304 Stainless Steel (Optional SUS316L) |
| Heating Method | Steam Heating |
| Control System | Stainless Steel Control Cabinet |
| CIP System | Integrated CIP Pipelines & Valves |
IV. Applications of 1000L/H Continuous Distillation System
The 1000L/hr continuous distillation system is suitable for:
- Neutral Grain Spirit (NGS) Production
- Vodka Base Spirit Production
- Industrial Food Grade Alcohol Production
- Agricultural Alcohol Processing
- Distillery Expansion Projects
- Continuous Spirit Refining Operations
V. Why Choose Tiantai Brewtech?
With years of experience in brewing and distillation system manufacturing, Tiantai Brewtech provides reliable, efficient, and customized alcohol production solutions for customers worldwide. Our engineering team can customize column height, plate quantity, packing type, automation level, and alcohol purity targets according to specific production requirements.
Whether you are producing beverage-grade neutral spirits or industrial alcohol, Tiantai Brewtech's continuous distillation systems deliver the performance, reliability, and efficiency required for modern distillation operations.
Contact us today for a customized proposal and technical consultation.
