5bbl 600L 6HL Combined 3-Vessel Micro Brewery Equipment
- Aug 21, 2025
- 107
- tiantai
I. Brief introduction of 5bbl 600L 6HL Combined 3-Vessel Micro Brewery Equipment
Combined 3-Vessel Brewery Equipment is a little special structure in microbrewery, which consists of a combined vessel of mash/lauter tun on top and hot liquor tank on bottom, and another vessel of kettle/whirlpool tun. This kind structure is suitable for those who want to save budget or save floor area etc.. It can be placed in restaurants, brewpubs, bars, hotels or independent brewing room, which is common and popular in some European countries. Here, let us show you 5bbl/600L/6HL Combined 3-Vessel Micro Brewery Equipment in details.
II. Quick overview of 5bbl 600L 6HL Combined 3-Vessel Micro Brewery Equipment
III. More Introduction of 5bbl 600L 6HL Combined 3-Vessel

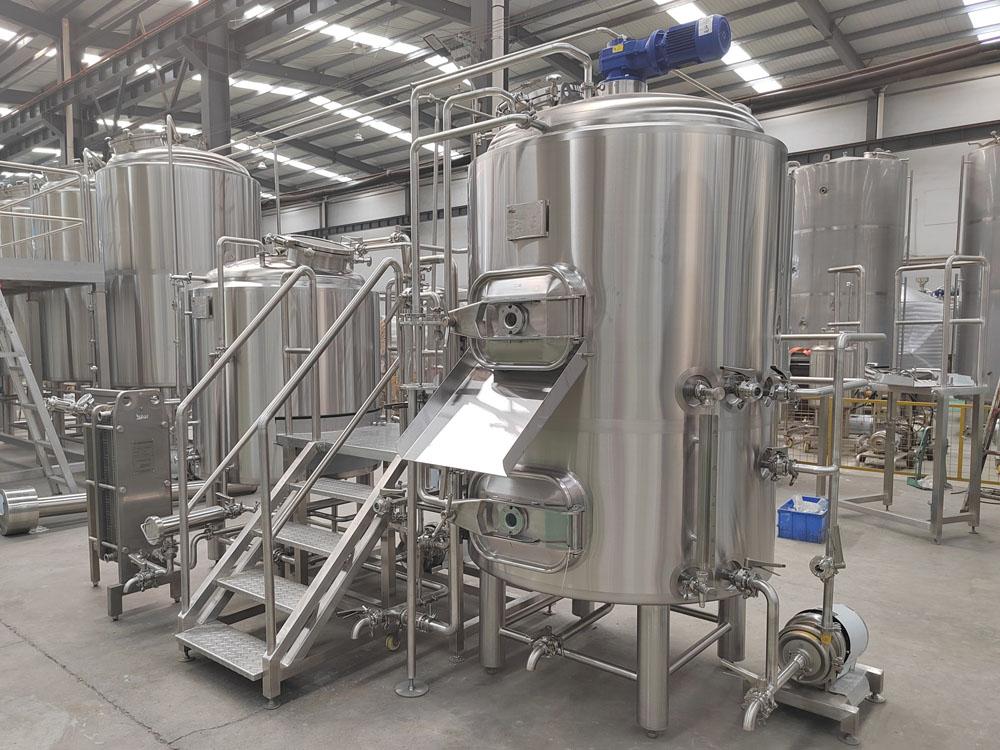

A.Stacked Mash/Lauter tun and Hot Liquor Tank
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball and sparging ring
-Side mounted grain outdoor with grain chute
-Grain rake with VFD controlled motor& turbine reducer
-False Bottom/Filter
B.Kettle/Whirlpool Tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball
-Steam vent by steam condensor with spray nozzles
-Tangential whirlpool inlet
C.Other auxiliary equipment
-3T Sanitary wort and hot liquor pump
-Manifold for liquid flow easily controlling
-Completely stainless steel work platform
-6m2 Two stages or single stage plate heat exchanger
-Sanitary wort aeration mounted with stone
-10L Sanitary SUS304 full welded yeast feeder

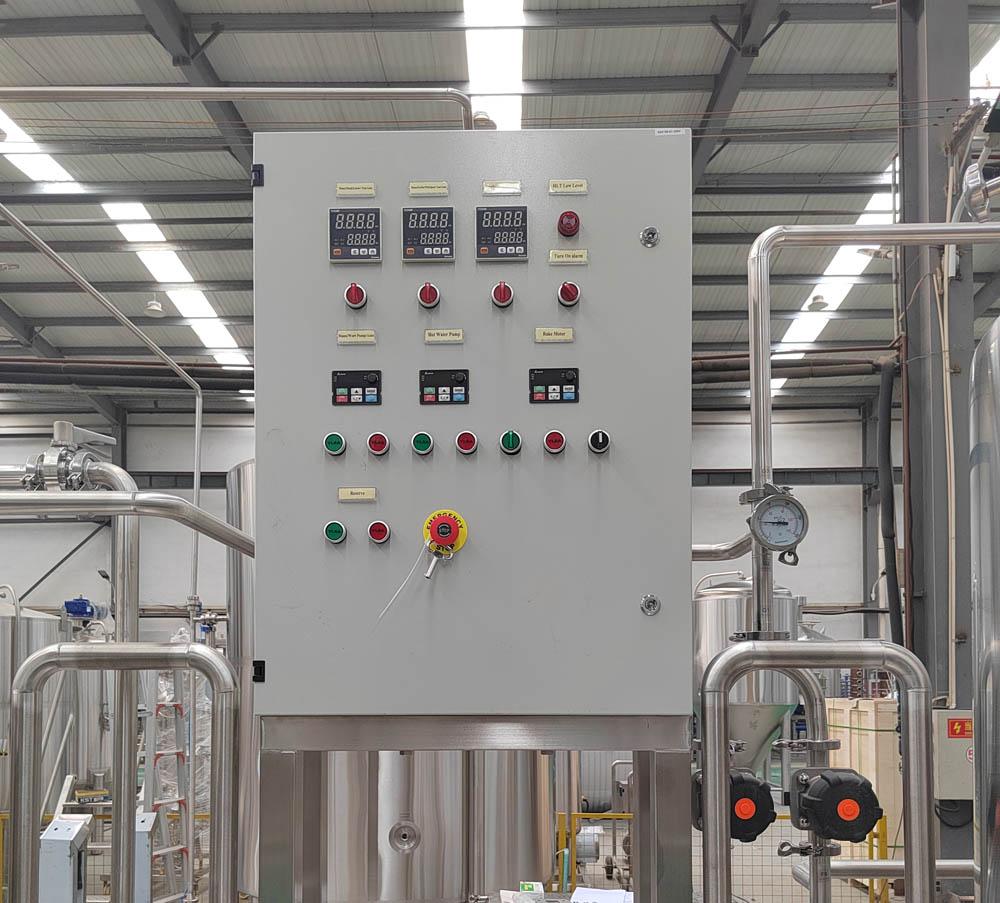

-PID control panel
Contact us immediately to get latest specification and price of 5bbl 600L 6HL Combined 3-Vessel Micro Brewery Equipment.
Combined 3-Vessel Brewery Equipment is a little special structure in microbrewery, which consists of a combined vessel of mash/lauter tun on top and hot liquor tank on bottom, and another vessel of kettle/whirlpool tun. This kind structure is suitable for those who want to save budget or save floor area etc.. It can be placed in restaurants, brewpubs, bars, hotels or independent brewing room, which is common and popular in some European countries. Here, let us show you 5bbl/600L/6HL Combined 3-Vessel Micro Brewery Equipment in details.
II. Quick overview of 5bbl 600L 6HL Combined 3-Vessel Micro Brewery Equipment
| Mill: | 300-500KG/hr Roller Mill |

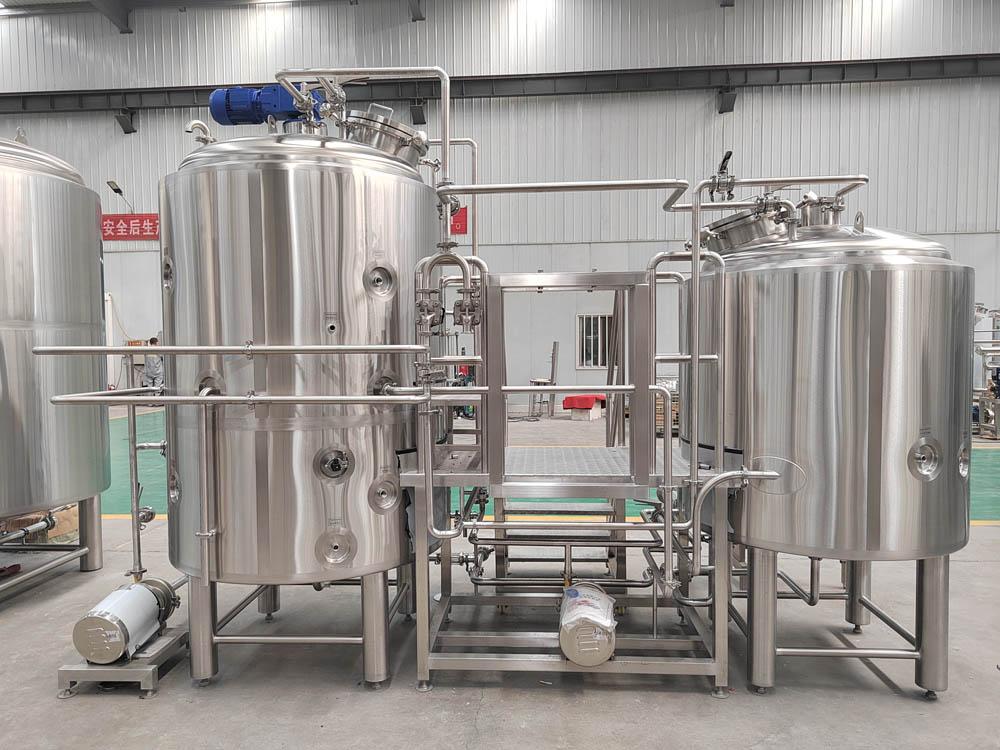

| Brewhouse: | Stacked Mash/Lauter tun and Hot Liquor tun + Kettle/Whirlpool tun |

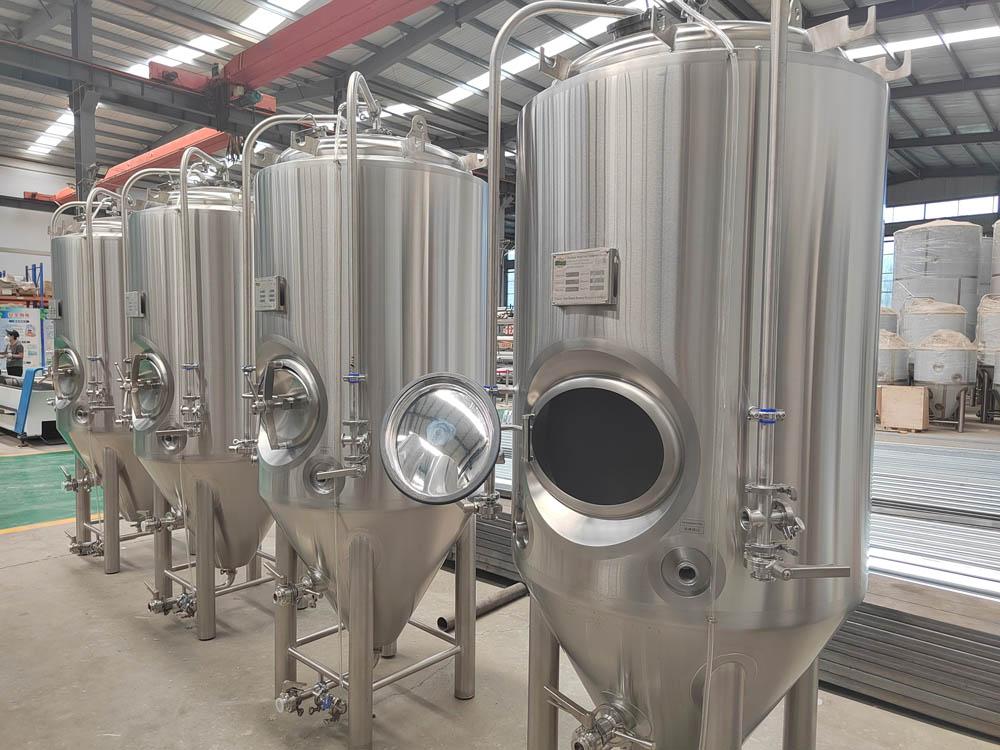

| Fermentation Tank: | 4-10 sets Fermentation Unitank |
| Brite Tank: | 1-2 sets Bright Beer Tank |
| Glycol Chilling Unit: | Glycol Water Tank+Chiller+Glycol Pipeline |
| Electric Control Unit | Brewhouse Control and Fermenation Control |

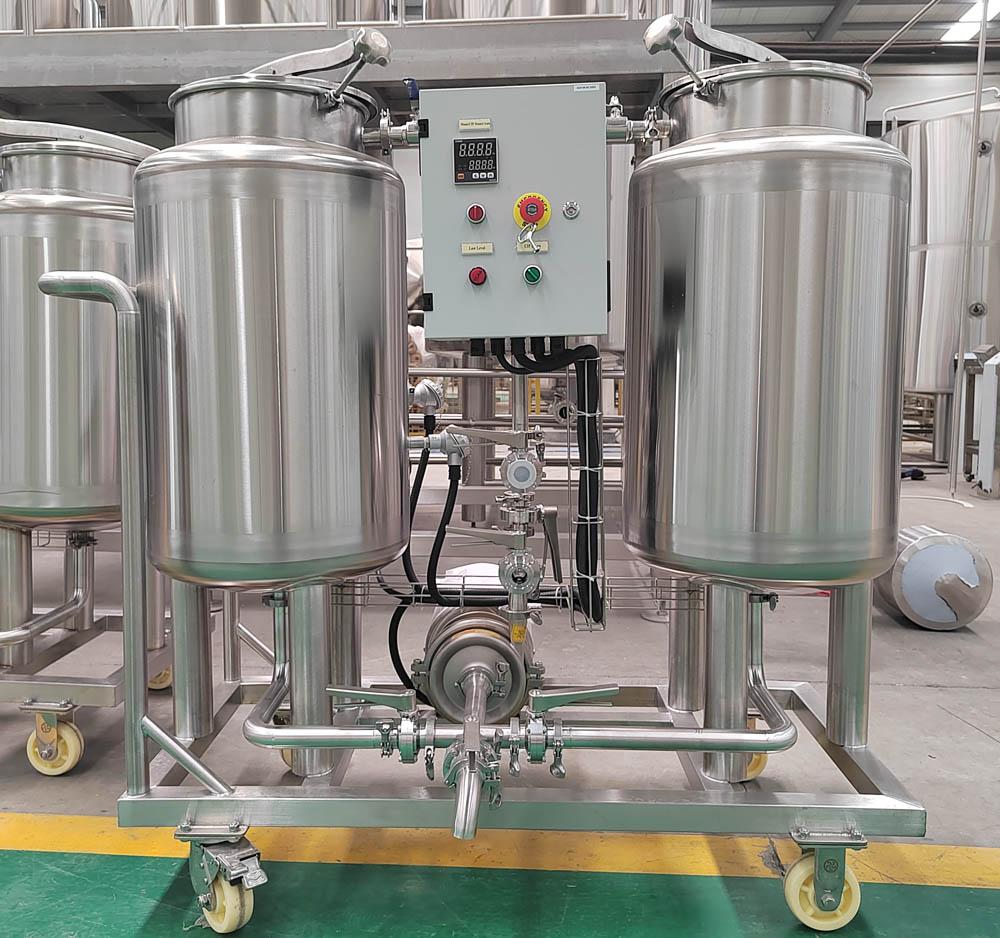

| CIP: | 100L 2-Tank CIP Cart |
| Batches/Day: | 1 batch per day |
| Heating Way: | Electric, steam or direct fire |
| Electric Power: | 3phase/380(220,415,440...)v/50(60)Hz |
| Note: | Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter; |
III. More Introduction of 5bbl 600L 6HL Combined 3-Vessel
A.Stacked Mash/Lauter tun and Hot Liquor Tank
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation

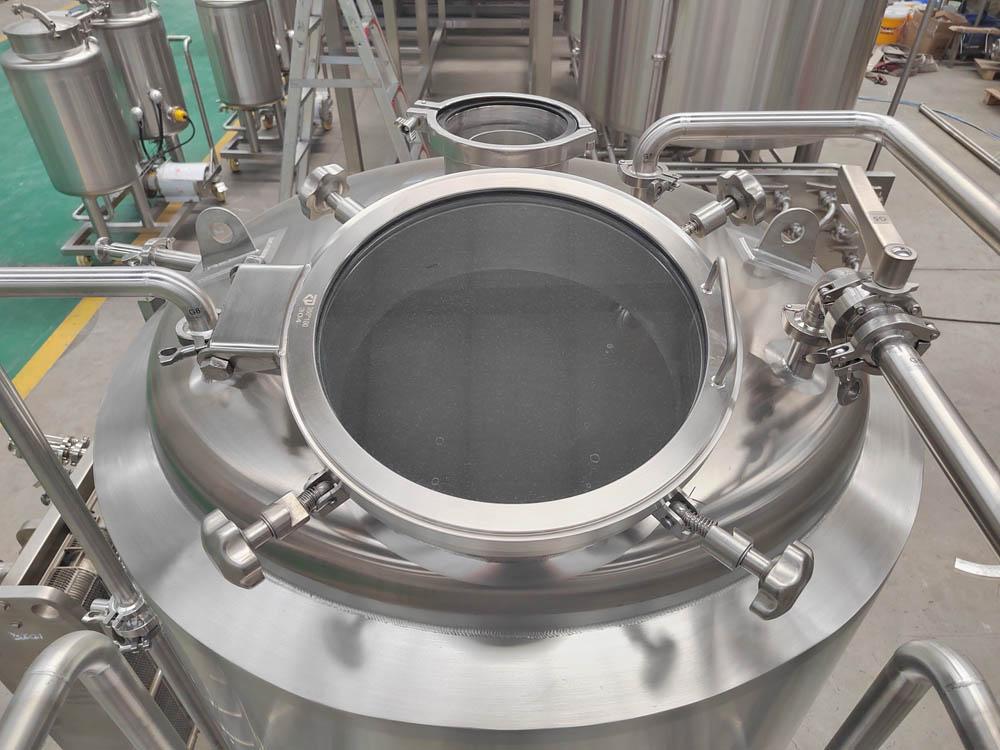

-Stainless steel/glass manway
-CIP spraying ball and sparging ring
-Side mounted grain outdoor with grain chute

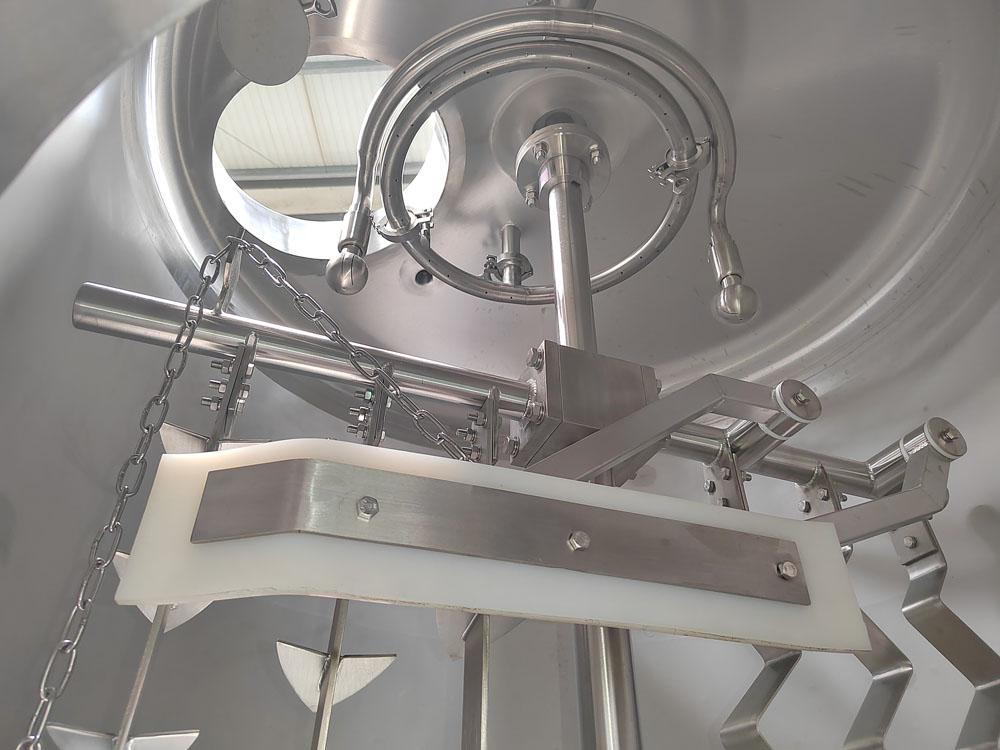

-Grain rake with VFD controlled motor& turbine reducer
-False Bottom/Filter
B.Kettle/Whirlpool Tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball
-Steam vent by steam condensor with spray nozzles
-Tangential whirlpool inlet
C.Other auxiliary equipment
-3T Sanitary wort and hot liquor pump
-Manifold for liquid flow easily controlling
-Completely stainless steel work platform
-6m2 Two stages or single stage plate heat exchanger
-Sanitary wort aeration mounted with stone
-10L Sanitary SUS304 full welded yeast feeder
-PID control panel
Contact us immediately to get latest specification and price of 5bbl 600L 6HL Combined 3-Vessel Micro Brewery Equipment.
