600L Jacketed Conical Fermenter
- Apr 11, 2026
- 147
- tiantai
General Introduction of 600L Jacketed Conical Fermenter

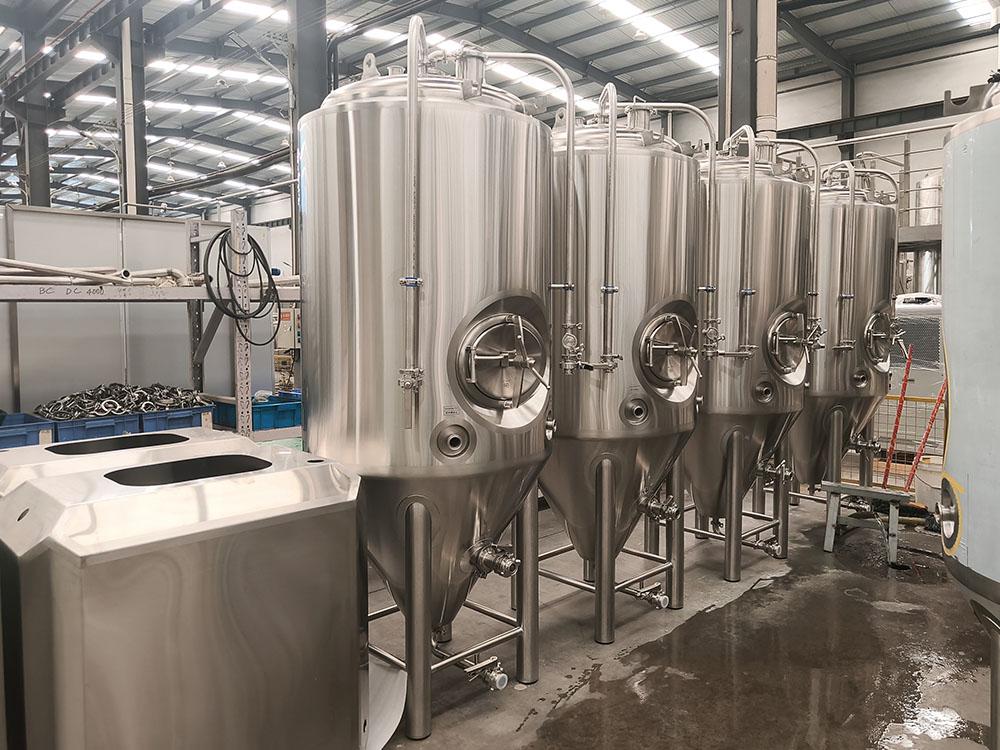

The 600L jacketed conical fermentation tank is a compact, high-efficiency vessel designed for precise beer fermentation and maturation. It is widely used in craft breweries, pilot systems, brewpubs, and experimental production environments.
Constructed from high-quality food-grade stainless steel (typically SUS304 or optional SUS316), the tank ensures excellent hygiene, durability, and corrosion resistance.
The conical bottom with 60°angle, which allows for efficient yeast sedimentation and easy discharge, improving yeast management and beer clarity. Side manway for easy maintenance and operation.

General Specification of 600L Jacketed Conical Fermenter

Main Configurations of 600L Jacketed Conical Fermenter
-Interior Shell: SUS304 full welded TH=3mm
-Exterior Shell:SUS304 full welded TH=2mm
-100% TIG welding with pure argon gas shield
-Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner
-Insulation: Polyurethane; TH=80mm
-Glycol Jacket: Dimpled plate on cone and side
-Dished head and 60 degree cone bottom

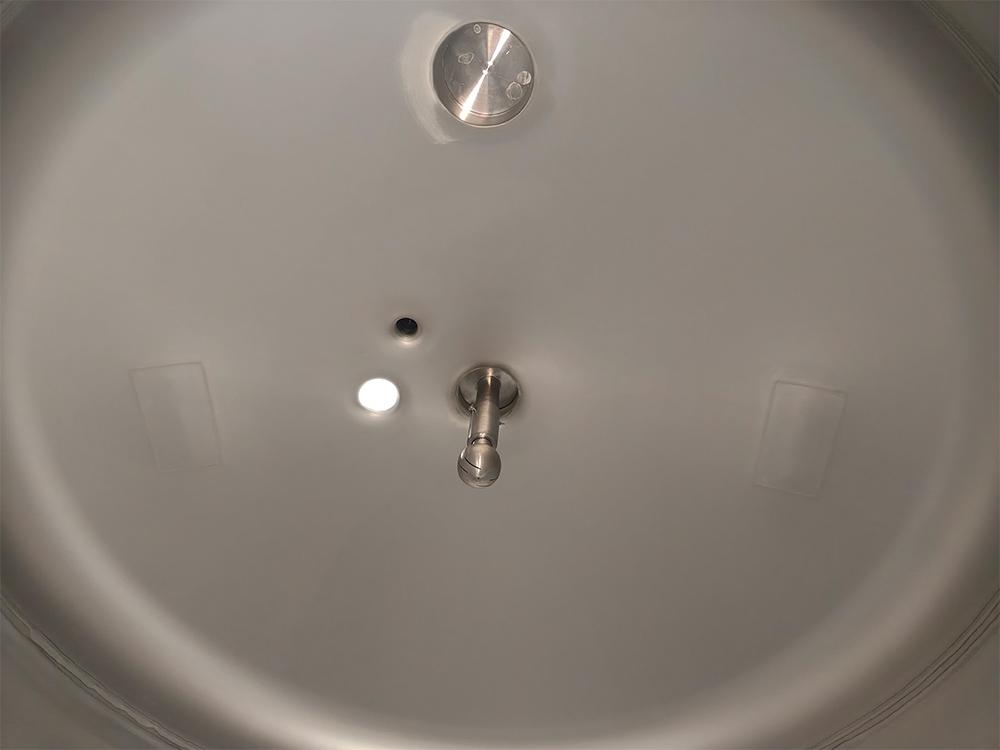

-CIP arm with 360° coverage CIP spraying ball
-Mechanical relief valve 2 bar on CIP arm
-Shockproof pressure gauge on CIP arm
-Rotating racking arm and port on cone with butterfly valve

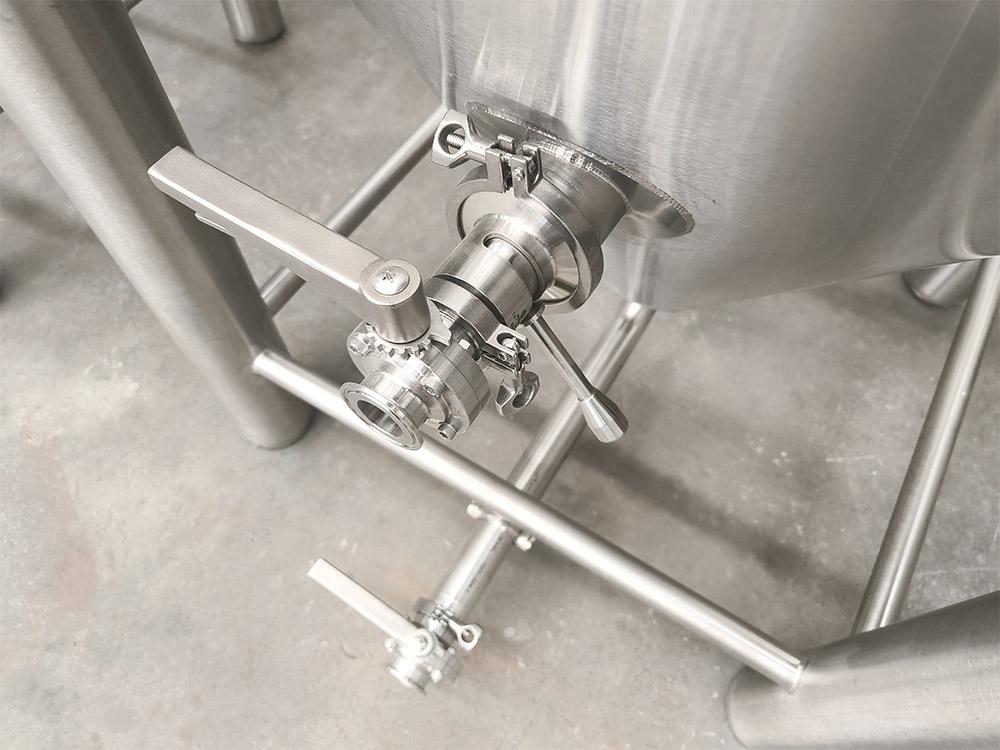

-Tri clamp discharge arm with butterfly valve
-Thermowell for high accuracy temperature sensor
-Level tube
-Carbonation port and stone
-Bunging valve
Contact us immediately to get latest specification and price of 600L Jacketed conical fermenter
The 600L jacketed conical fermentation tank is a compact, high-efficiency vessel designed for precise beer fermentation and maturation. It is widely used in craft breweries, pilot systems, brewpubs, and experimental production environments.
Constructed from high-quality food-grade stainless steel (typically SUS304 or optional SUS316), the tank ensures excellent hygiene, durability, and corrosion resistance.
The conical bottom with 60°angle, which allows for efficient yeast sedimentation and easy discharge, improving yeast management and beer clarity. Side manway for easy maintenance and operation.

General Specification of 600L Jacketed Conical Fermenter
| Capacity | 600L |
| Dimension | Φ960 x2560mm |
| Conical Bottom | 60°or Customized |
| Manway | Side |
| Dry Hopping Port | 4’’ with solid end |
| Glycol Jacket | Dimple plate on bottom and side |
| Heavy Dute Leg | 4PCS |
| Carbonation | Yes |

Main Configurations of 600L Jacketed Conical Fermenter
-Interior Shell: SUS304 full welded TH=3mm
-Exterior Shell:SUS304 full welded TH=2mm
-100% TIG welding with pure argon gas shield
-Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner
-Insulation: Polyurethane; TH=80mm
-Glycol Jacket: Dimpled plate on cone and side
-Dished head and 60 degree cone bottom
-CIP arm with 360° coverage CIP spraying ball
-Mechanical relief valve 2 bar on CIP arm
-Shockproof pressure gauge on CIP arm
-Rotating racking arm and port on cone with butterfly valve
-Tri clamp discharge arm with butterfly valve
-Thermowell for high accuracy temperature sensor
-Level tube
-Carbonation port and stone
-Bunging valve
Contact us immediately to get latest specification and price of 600L Jacketed conical fermenter
