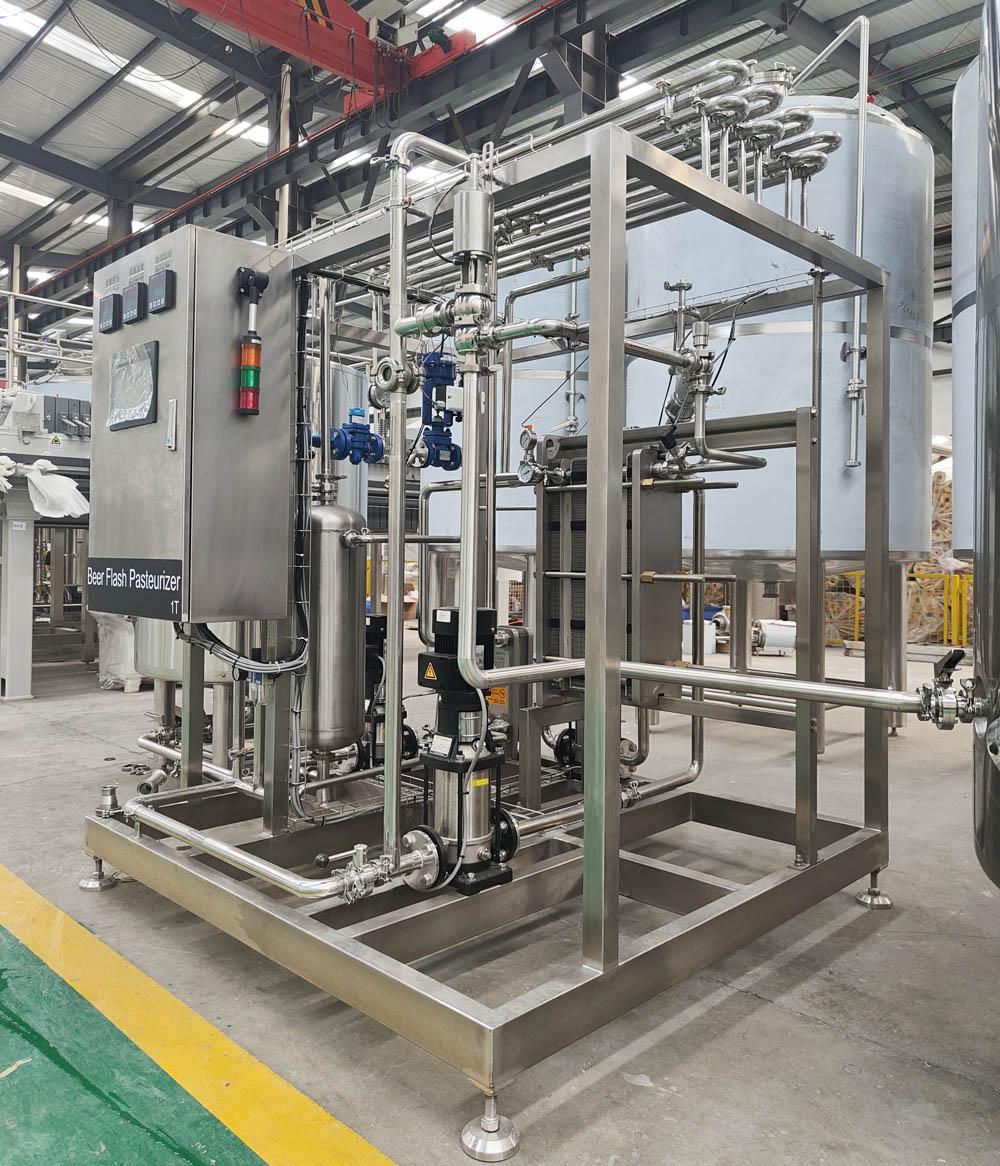

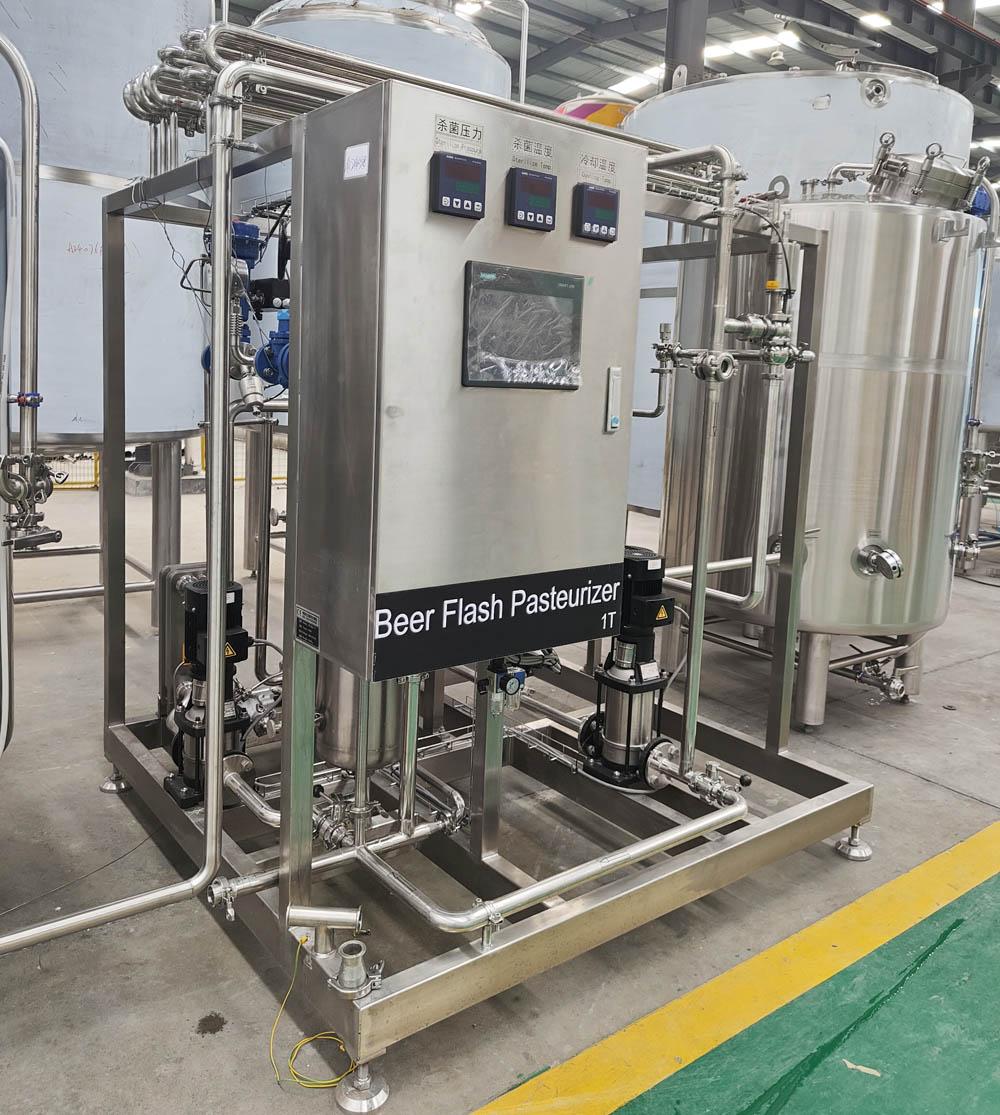

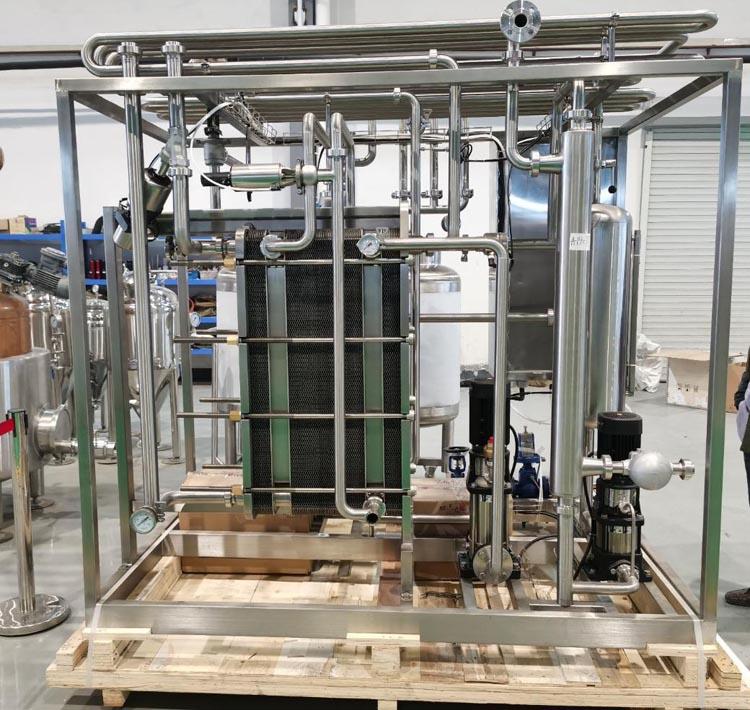

1000L/hr Plate Type Flash Pasteurizer in Brewery
- Dec 20, 2025
- 146
- tiantai
I. Technical Information of 1000L/hr Plate Type Flash Pasteurizer in Brewery
♦ Temp. process: 1~4℃→72℃(hold 30sec)→2~4℃
♦ Capacity:1000 L/h
♦ Power: 2.4 kw
♦ Steam pressure: ≥ 2.5 bar
♦ Steam consumption: 12kg/h
♦ Ice water flo: 3,000 L/h (-2~1℃)
♦ Compressed air: ≥ 6.0 bar
II. Auxiliary machine of 1000L/hr Plate Type Flash Pasteurizer in Brewery
♦ Inlet buffer tank: 1000L
♦ Outlet buffer tank: 1000L
♦ Glycol water tank: 1000L
♦ Glycol chiller: 10HP
♦ Glycol water pump: 8m3/hr
♦ Steam Generator: 30kg/hr
♦ Air compressor: 3KW
♦ Temp. process: 1~4℃→72℃(hold 30sec)→2~4℃
♦ Capacity:1000 L/h
♦ Power: 2.4 kw
♦ Steam pressure: ≥ 2.5 bar
♦ Steam consumption: 12kg/h
♦ Ice water flo: 3,000 L/h (-2~1℃)
♦ Compressed air: ≥ 6.0 bar
II. Auxiliary machine of 1000L/hr Plate Type Flash Pasteurizer in Brewery
♦ Inlet buffer tank: 1000L
♦ Outlet buffer tank: 1000L
♦ Glycol water tank: 1000L
♦ Glycol chiller: 10HP
♦ Glycol water pump: 8m3/hr
♦ Steam Generator: 30kg/hr
♦ Air compressor: 3KW
