Our 5BBL stainless steel conical fermentation tank is designed for professional craft breweries and pilot brewing facilities. Built with food-grade 304 stainless steel and precision welded construction, this fermenter ensures excellent hygiene, durability and brewing performance.

Equipped with a fully jacketed cooling system, this unit provides stable temperature control for high-quality fermentation. The 60° conical bottom allows efficient yeast collection and beer clarification, while the CIP spray ball and sanitary fittings make cleaning and maintenance fast and effortless.

Ideal for craft beer producers who seek consistent fermentation results, flexible brewing schedules, and long-term reliability.





Features


Capacity: 5BBL (approx. 1,170 liters working volume)

Material: Food-grade SUS304 stainless steel (SUS316 optional)

Surface Finish: Interior polished to Ra ≤ 0.4 μm; exterior brushed or mirror finish optional

Design Pressure: 0.3 MPa; Working Pressure: 0.2 MPa

Insulation: 80mm polyurethane foam for energy efficiency

Cooling System: Dimple jackets on both cylinder and cone area, glycol cooling

Cone Angle: 60° conical bottom for efficient yeast collection

Temperature Control: PT100 sensor with digital display (optional)

Manway: Side-mounted or top-mounted, with safety lock

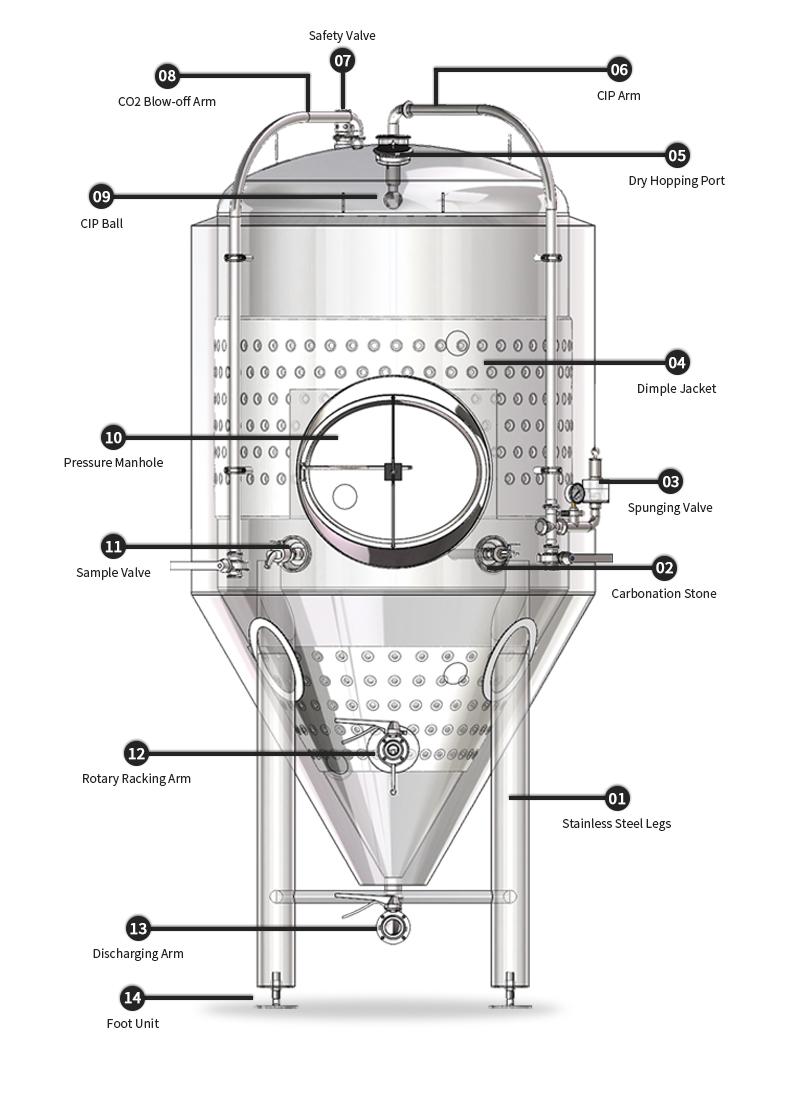

Valves & Fittings:

CIP rotary spray ball

Sampling valve

Pressure relief valve

CO blow-off pipe

Racking arm

Pressure gauge

Legs: 3 or 4 adjustable heavy-duty legs with stainless steel leveling pads

Specifications
