When you consider to open a craft brewery, you need to found or own a premises for installation. As a professional beer brewery equipment manufacturer, when we talk with our clients, many of them may meet a problem: The installation space or ceiling height is limited for the installation of the brewery equipment they need. So now what kind of special design could we have for the brewery equipment accordingly?
For each brewery project, we will help to design both of layout and the 2D & 3D drawing accordingly, there are usually several design may be used usually based limited installation space:
I. Special customized brewhouse structure
For the brewhouse unit, the most commonly used structure is 2 vessel, means mash/lauter tun, kettle/whirlpool tun and extra hot liquor tank. For saving installation space, the mash lauter tun could be stacked on hot liquor tank. But please ensure that your ceiling height is enough now for the stacked tanks installation.
.jpg)

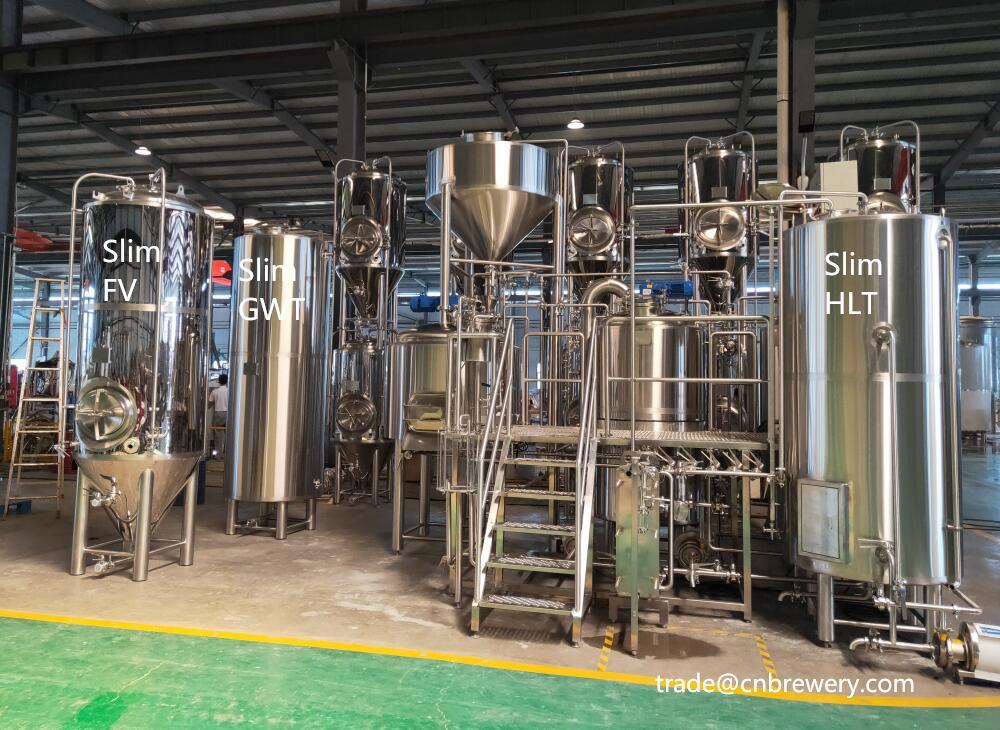

II. Special customized tank dimension
What being used more popularly is customizing the tank diameter to save space, especially for the hot liquor tank, cold liquor tank, glycol water tank and fermenters etc. As diemension changing without big influence on beer brewing.
.jpg)
III. Stacked one tank on another
If you have quite big enough ceiling height, stacking one tank on another is also one choice, this method is more popularly used on fermenters and brite tanks. But now the center of gravity is much higher as well, so better to use much bigger leveling pad which would touch with your floor, better fixing the leveling pad on the floor via bolts.
.jpg)
If you are planning your own beer brewery project and need us to help to design the brewery layout, please feel free to share your building drawing with us, we will help to design the installation layout and design the brewery equipment accordingly.
Laura Hou
Sales Manager
Tiantai Beer Equipment
[email protected]
