800L Ginger Beer Brewing Equipment
- Aug 05, 2025
- 171
- tiantai
Designed for African markets, this turnkey ginger beer production line combines traditional beer brewing technology with specialized ginger processing modules.
The system enables seamless integration of ginger extraction and beer brewing, suitable for producing both alcoholic and non-alcoholic ginger beer.Ideal for clients in Rwanda, Côte d'Ivoire, and other African regions, the line supports high-efficiency production while accommodating local raw material characteristics.
Core Components & Process Flow
| Unit | Specifications |
| Ginger Processing |

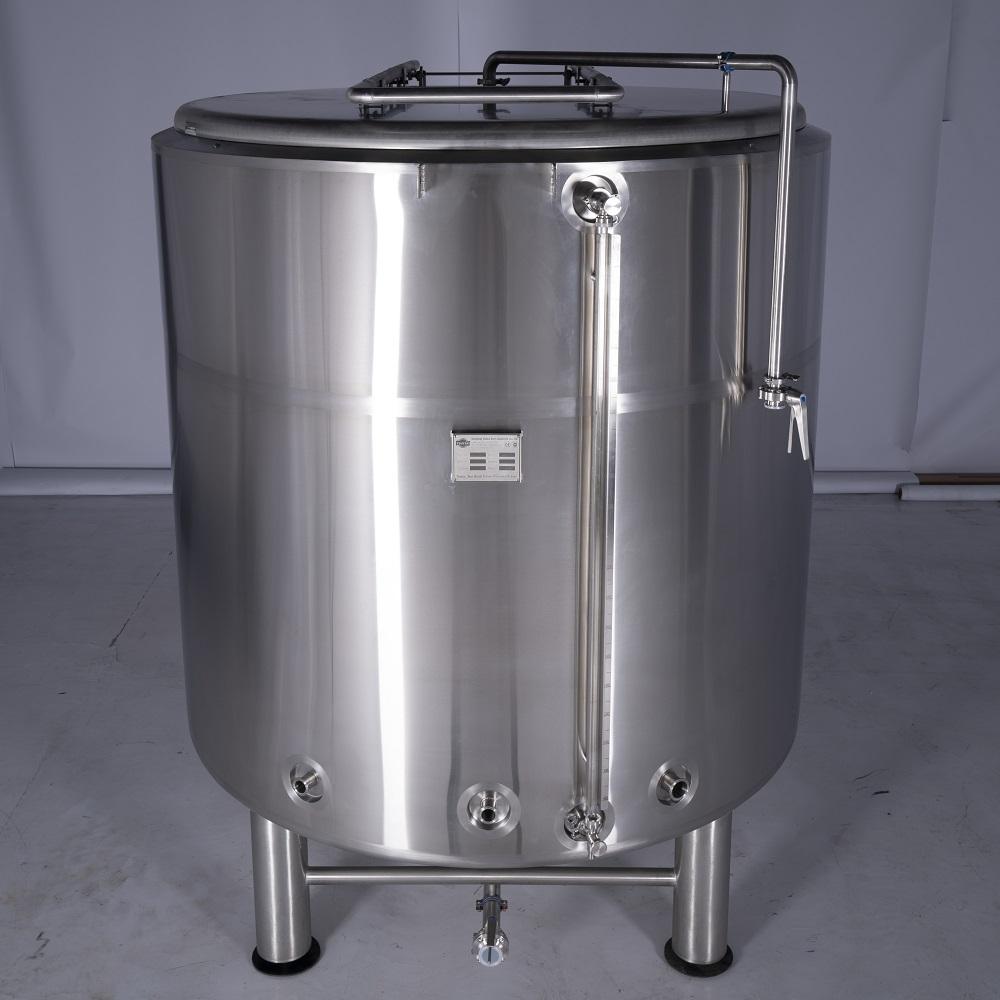

- Washing machine: Stainless steel drum for ginger decontamination - Crusher: 300-500kg/hr capacity, adjustable particle size - Extraction tank: 800L with agitator for ginger juice extraction |
| Brewing System |

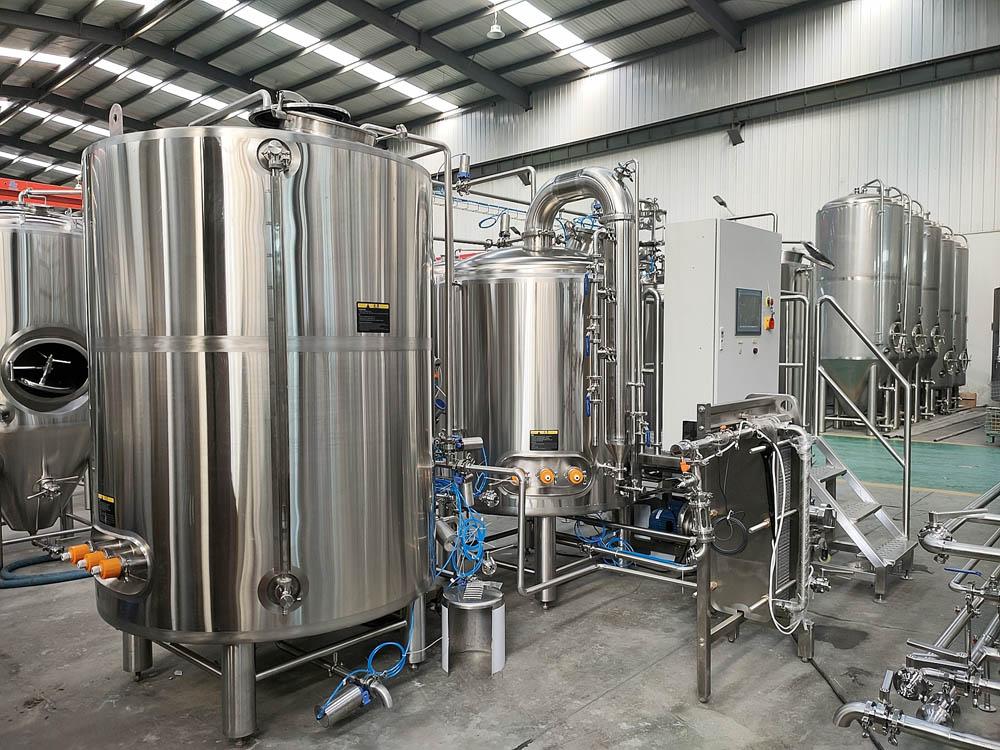

- 800L mash/lauter tun: For malt mashing (if using malt as raw material) - 800L kettle/whirlpool tun: Steam-heated for wort boiling - 800L hot water tank: For mashing and sparging |

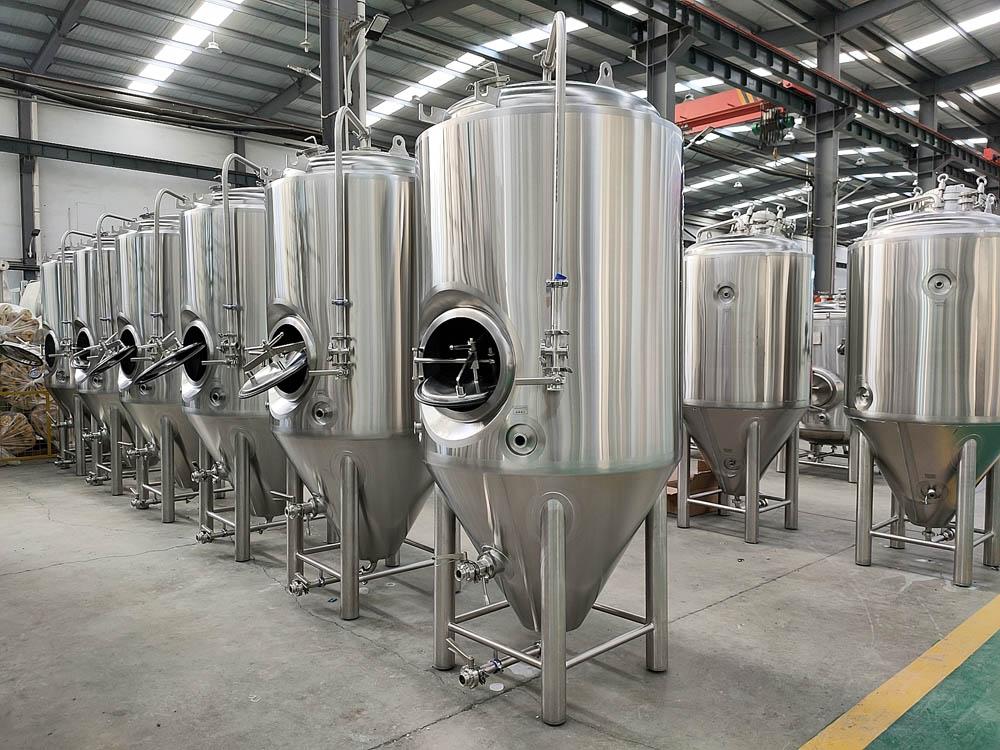

| Fermentation Unit | 4x 800L fermentation tanks: Stainless steel with glycol jacket, pressure rating ≤2bar |
| Filtration & Packaging | 500kg/hr candle DE filter + 4-station semi-auto bottling machine (160-240 bottles/hr) |
| Control Panel | PLC-based system with temperature, agitation, and fermentation monitoring |
Unique Process Stages
Ginger Preprocessing
Washing: Remove dirt and impurities via rotating drum washer.
Crushing: High-speed crusher reduces ginger to 2-5mm particles for optimal juice extraction.
Extraction: Heat ginger particles in the extraction tank (60-70℃) for 30 minutes to release flavor compounds.
Brewing Integration
Mashing (if using malt): Mill malt, mix with hot water in the mash tun, and convert starch to sugar.
Wort Boiling: Add ginger extract to the kettle during wort boiling (60-90 minutes) to infuse flavor.
Fermentation: Transfer wort to fermenters, pitch yeast, and ferment at 18-22℃ for 7-14 days.
Post-Fermentation
Filtration: Clarify ginger beer via DE filter to remove yeast and particulates.
Bottling: Semi-auto line with CO₂ backpressure to maintain carbonation (2.0-2.5 volumes).
Key Advantages for African Markets
Local Raw Material Adaptability: Optimized for ginger varieties common in Africa, with adjustable crushing and extraction parameters.
Dual-Mode Production: Supports both alcoholic ginger beer (with fermentation) and non-alcoholic versions (by skipping yeast addition).
Cost-Effective Design: Shares 70% components with traditional beer equipment, reducing investment by 20% vs. dedicated ginger beer lines.
Energy Efficiency: 8HP glycol chiller with UL-compliant components, suitable for African voltage (380V/50Hz or custom).
Customization Options
Ginger Processing Upgrade: Add screw press for higher juice extraction rate (recommended for >1000L/day output).
Malt Handling Module: Include malt mill and auger conveyor for clients using raw malt instead of concentrate.
Sanitation Enhancement: Upgrade to automatic CIP system (200L caustic + acid tanks) for large-scale production.
If you're thinking of brewing ginger beer, contact us for a free consultation!
