600L Horizontal Brite Tank

Brief introduction

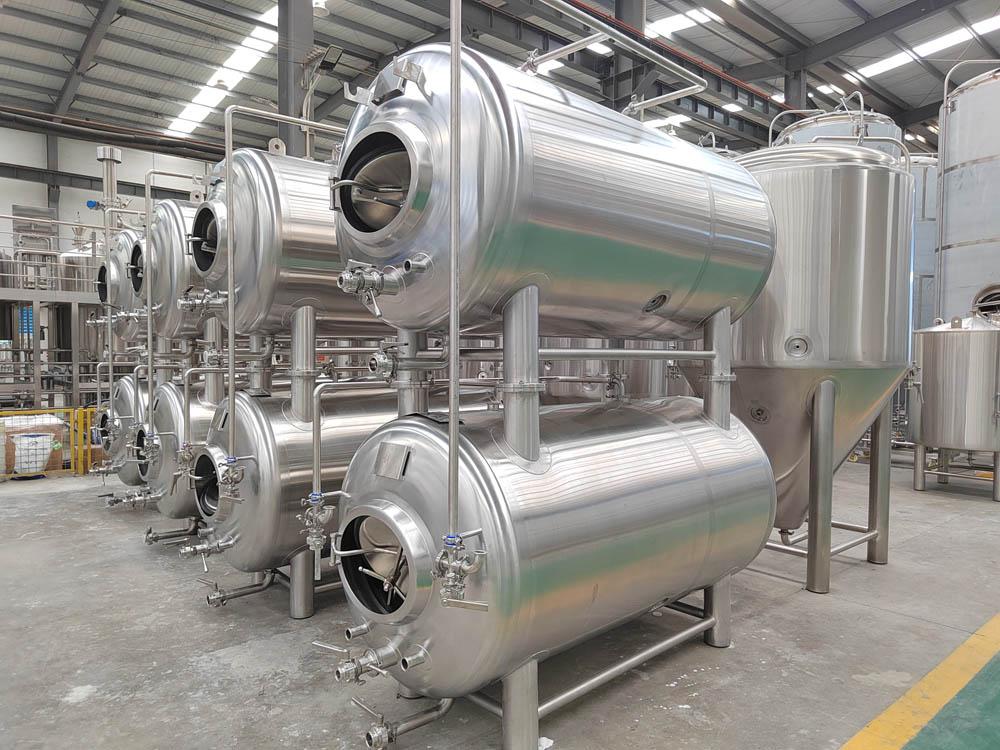

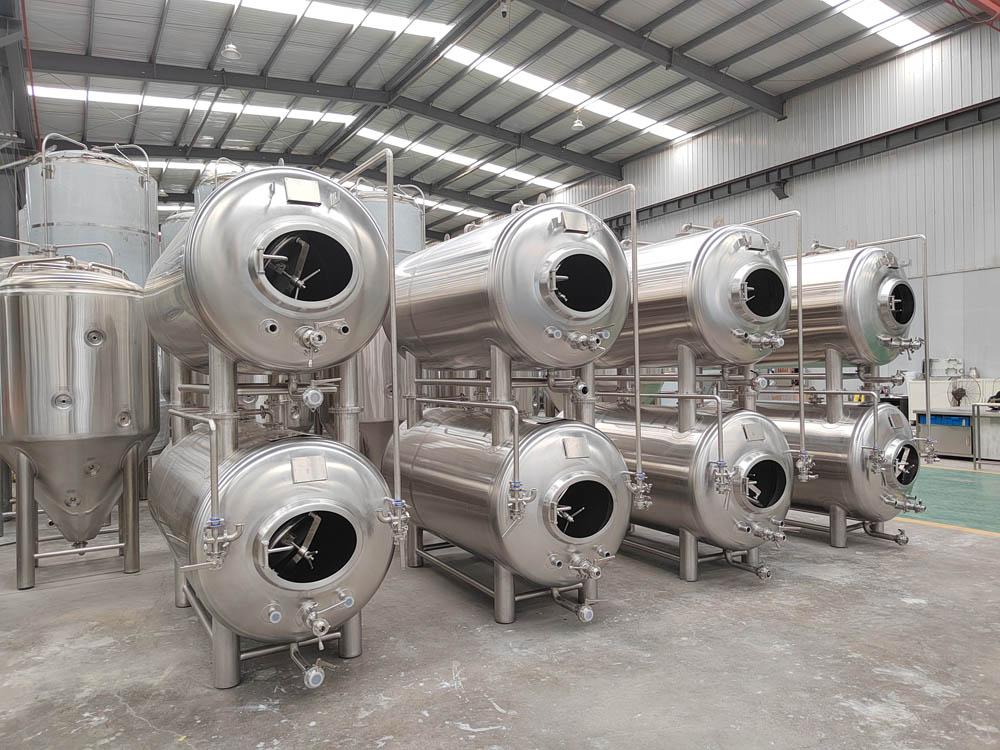

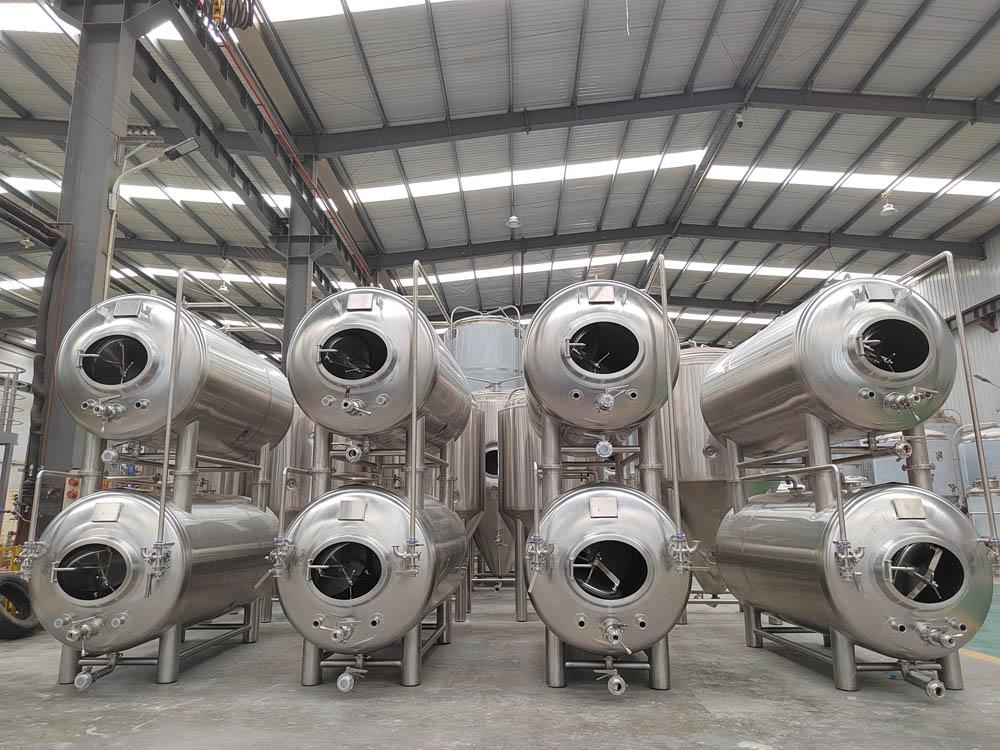

Horizontal bright tanks/brite tank is usually put in the place where the space is limited in height. For save some space the tanks can be stackable. And usually you can see it in European due to old building and height issues.

Besides due to old brewing technology, some European brewmasters remove the yeast from top of fermetner and transfer the beer into horizontal bright tank for conditioning after primary fermentation from open top fermenter,. And brewmaster also brew season beer with horizontal bright beer tank when at suitable temperature. Furthermore the horizontal brite tank can be single wall without cooling jacket and put in the cold room.

Horizontal Bright Beer Tank

Quick overview of horizontal bright beer tank

Capacity 600L
Dimension Φ1060x1900mm
Body of Tank Horizontal
Location of Manway Side mounted manway
Glycol Jacket Yes
Insulation Polyurethane 80mm
Heavy Duty Leg 4 pcs
Carbonation Device Yes
Welding 100% TIG welding with pure argon gas shield

 Main configuration of horizontal bright beer tank

- Shell: SUS304 full welded TH=3mm
-100% TIG welding with pure argon gas shield
-Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner
-Glycol Jacket: Dimpled plate on side

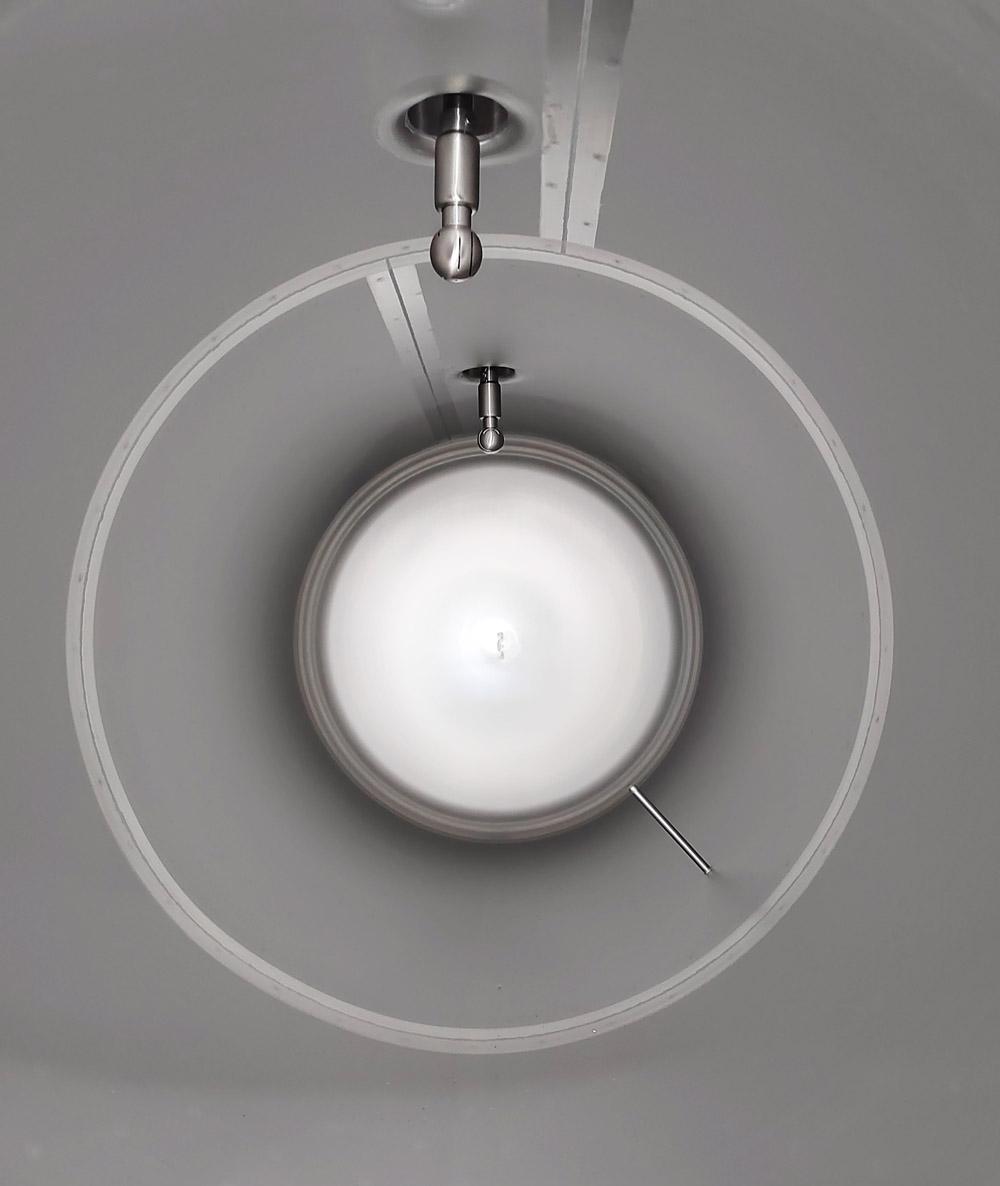

-CIP arm with 360° coverage CIP spraying ball
-Mechanical relief valve 2 bar on CIP arm
-Shockproof pressure gauge on CIP arm
-Rotating racking arm and port on cone with butterfly valve

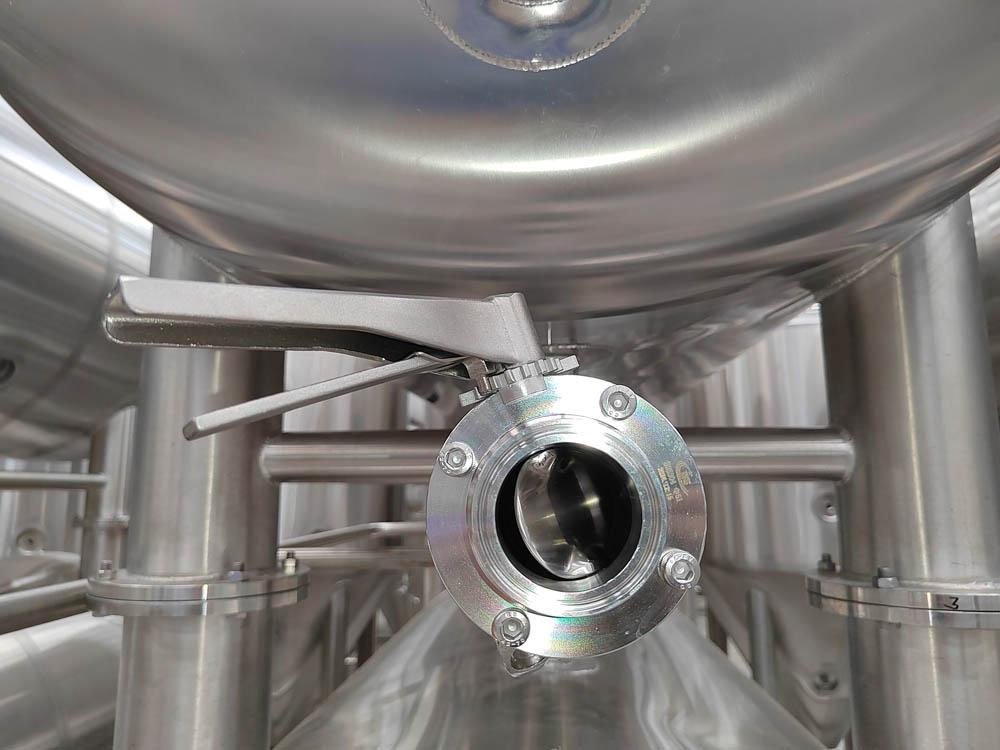

-Tri clamp discharge arm with butterfly valve
-Thermowell for high accuracy temperature sensor
-Level tube
-Carbonation port and stone

Contact us immediately to get latest specification and price of 600L horizontal brite tank.
